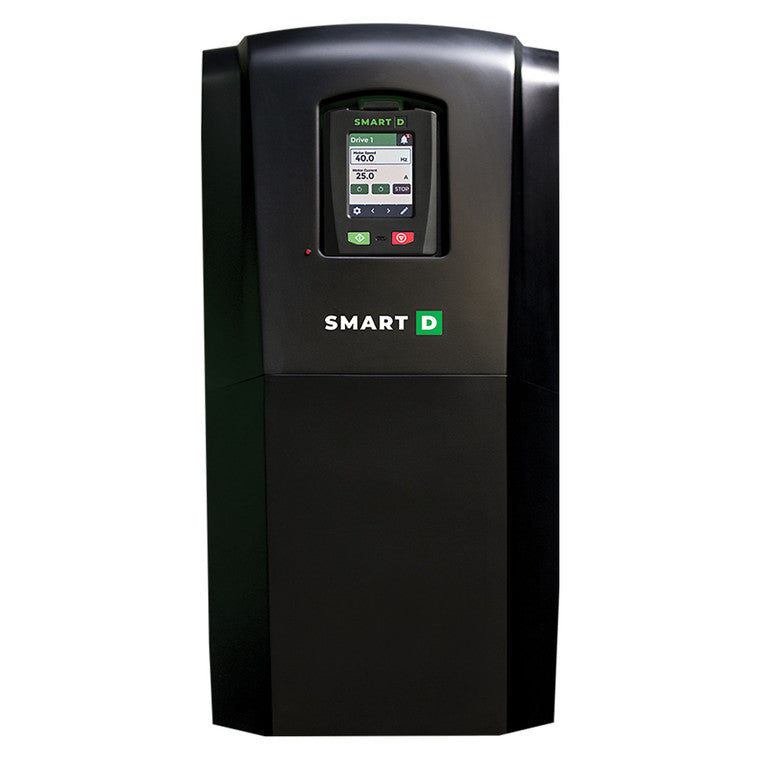

SMART D SDB-2-2110-A Clean Power AFE VFD 15HP 600V

Product Description

The SMART D SDB-2-2110-A Clean Power VFD provides reliable variable frequency drive functionality at fifteen horsepower and six hundred volts. It features an integrated Active Front End for improved power quality. This VFD minimizes common issues found in traditional drives, ensuring a clean output waveform that prolongs motor lifespan and enhances performance with regenerative braking.

• Ultra-low harmonics for IEEE 519 compliance, under five percent
• Near unity power factor of 0.98
• Suitable for demanding industrial applications

Product Highlights

The SMART D SDB-2-2110-A offers robust features tailored to extend the life of your motors and enhance energy efficiency.

Product Information

Standard Information

• Series: Clean Power VFD
• Model: SDB-2-2110-A

Technical Specifications

• Brand: SMART D
• Horsepower Rating: 15 HP
• Rated Amps: 17 A
• Rated Voltage: 600 V
• Phase Rating: 3 Phase Input - 3 Phase Output
• Ambient Temperature Rating: 50 °C
• Enclosure Rating: UL Type 1
• Frame Size: S3
• Communication Protocol: Modbus TCP/IP
• Dimensions: 25.59 in x 11.85 in x 9.88 in
