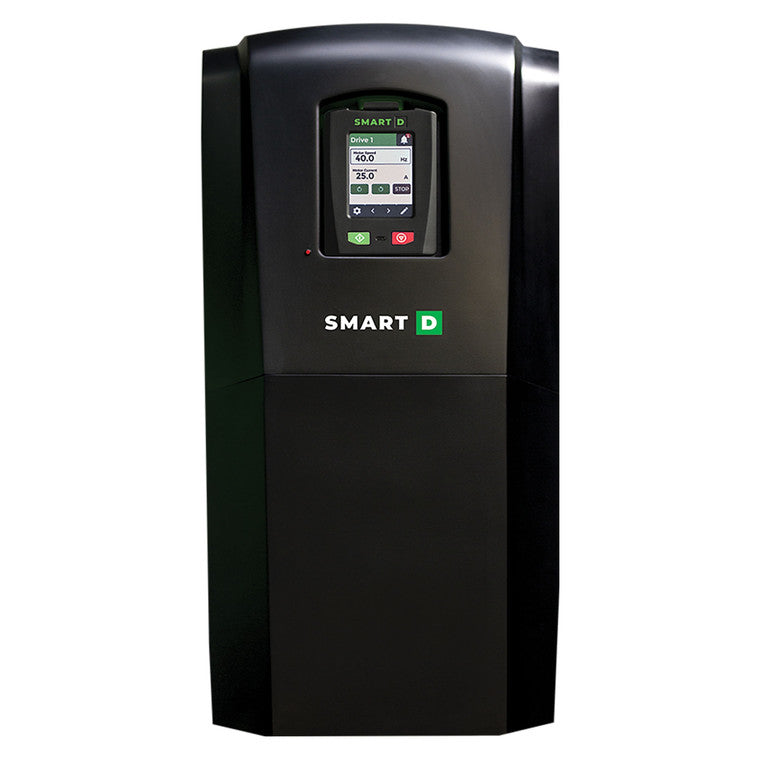

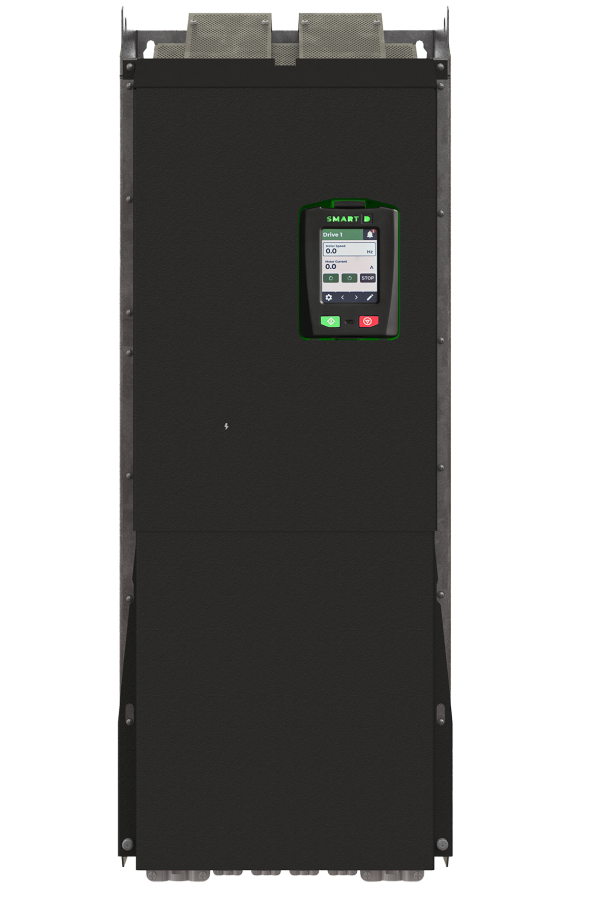

SMART D SDB-1-2450-A Clean Power Variable Frequency Drive 45kW-60 HP-82A

Product Description

The SMART D SDB-1-2450-A Clean Power Variable Frequency Drive is a compact AC drive designed for efficient control of 3-phase AC motors. Utilizing patented algorithms and WBG transistor technology, this VFD delivers clean and pure sine wave power that enhances motor performance and longevity.

• Variable frequency drive suitable for asynchronous 3-phase motors.
• Output provides pure sine wave voltage without the need for additional filters.
• Features built-in control methods like Clean Voltage sine wave and Field Oriented Control.

Product Highlights

The SMART D VFD is beneficial in applications where accuracy in motor speed and torque is essential. This drive is ideal for energy-efficient operations in HVAC, pumps, fans, and other industrial settings.

Product Information

Standard Information

• Brand: SMART D
• Model: SDB-1-2450-A

Technical Specifications

• Power Rating: 45 kW
• Voltage Input: 3 ~ 400 Y -15% / +10%, 3 ~ 480 Y -15% / +10%
• Output Current: 82 A (continuous)
• Dimensions: 13.8 in x 36.4 in x 13 in
• Weight: 133.16 lb
• Efficiency: 96%
• Temperature Rating: -15 to 50 °C without derating
• Cooling: Integrated, replaceable fans
• Protection Class: IP20, UL Type 1
