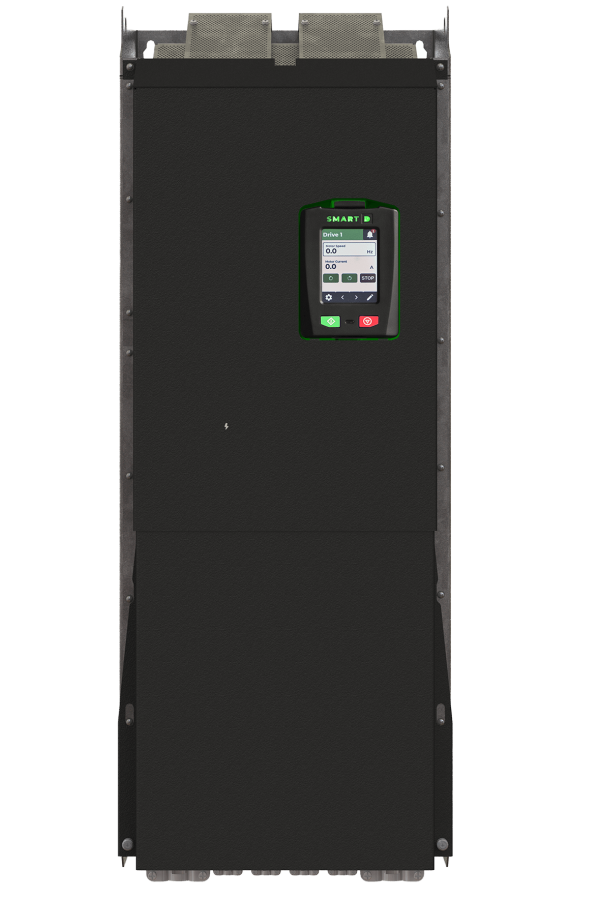

SMART D SDB-1-2375-A VFD 37.5kW-50 HP-68A

Brand: SMART D
SKU: SDB-1-2375-A
Availability: In Stock

Ships via freight in 1-3 business days
$10,010.74
$10,010.74
LTL Delivery

This product weighs 133 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SMART D SDB-1-2375-A is a variable frequency drive designed for controlling three-phase AC induction motors. Utilizing WBG transistor technology, it generates a clean sine wave for efficient motor control. The design includes features that save space, time, and wiring by eliminating the need for additional output filters, thereby enhancing motor longevity.

  • Suitable for asynchronous three-phase motors
  • Provides a clean voltage sine wave output
  • Includes V/f control methods for open and closed loops

Product Highlights

Engineered for efficiency, this drive can enhance the performance of motors while reducing energy consumption.

Product Information

Standard Information

  • Brand: SMART D
  • MPN: SDB-1-2375-A
Technical Specifications
Product function:
Variable frequency drive for AC motors
Controlled motors:
Asynchronous three-phase motors
Input Power Voltage:
3 ~ 400 Y -15%/+10%, 3 ~ 480 Y -15%/+10%
Input Power Frequency:
50 and 60 +/- 5%
Input line current:
71 A rms rated at 50°C (122°F)
Efficiency:
≥ 96%
Output Current:
68 A rms normal operation
Maximum Transient Output Current:
75 A rms for 60 seconds
Frequency Output Range:
0.001 to 0.5 kHz
Net Weight:
133.16 lb (60.4 kg)
Width:
13.8 in
Height:
36.4 in
Depth:
13 in
Cooling:
Integrated, replaceable fans
Protection Degree:
IP20
