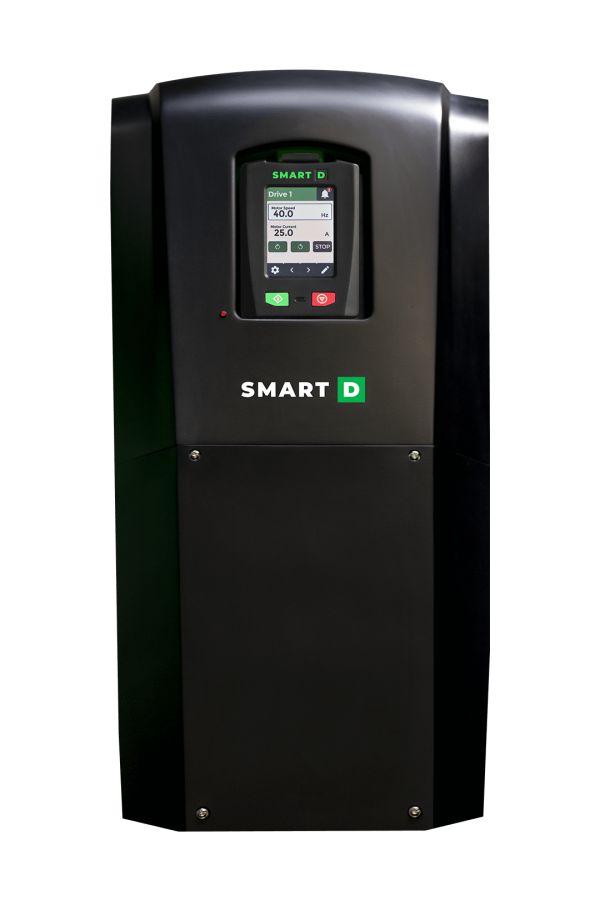

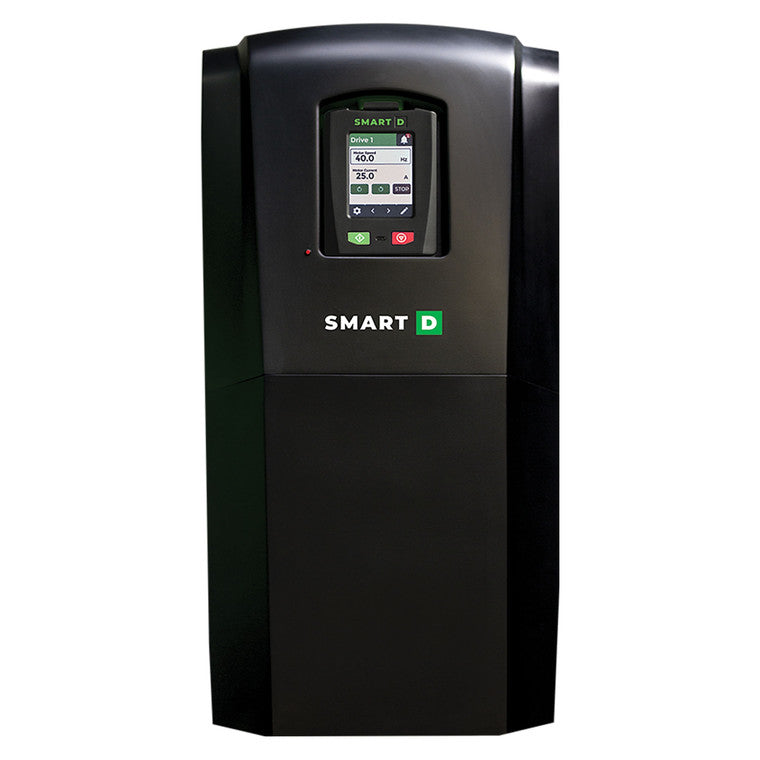

SMART D SDB-1-2185-A Clean Power VFD 25 HP

Product Description

The SmartD Clean Power Variable Frequency Drive, MPN SDB-1-2185-A, is designed for controlling 3-phase AC induction motors efficiently. It employs advanced algorithms and WBG technology to generate a clean sine wave output, enhancing motor performance and longevity. This VFD simplifies installation with built-in features that eliminate the need for external filters.

• Variable frequency drive tailored for AC motors
• Output provides pure sine wave for optimal motor operation
• Equipped with digital and analog inputs for flexible control

Product Highlights

This VFD is ideal for applications requiring precise motor control and energy efficiency. Its compact design and ease of integration make it suitable for various industrial environments.

Product Information

Standard Information

• Brand: SMART D
• Model: SDB-1-2185-A

Technical Specifications

• Power Rating: 25 HP
• Input Voltage: 3 ~ 400 V and 3 ~ 480 V
• Input Frequency: 50/60 Hz
• Output Current RMS: 34 A
• Efficiency: 96%
• Weight: 66 lb
• Dimensions: 11.85 in x 25.59 in x 9.88 in
• Ambient Temperature Rating: -15 to 50 °C
• Cooling Method: Integrated fans
