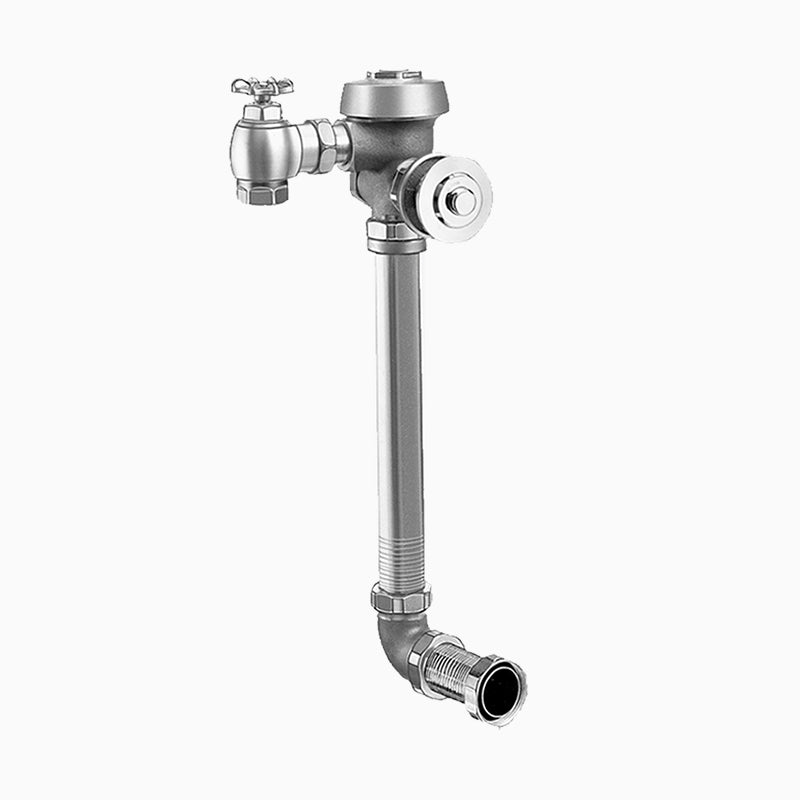

Sloan Valve 152-1.6 Royal Concealed Water Closet Flushometer

Product Description

The Sloan Valve Royal 152-1.6 is a concealed diaphragm-type water closet flushometer designed for wall box installation. It features a dual-filtered fixed bypass diaphragm, ensuring reliable operation. The flushometer includes a metal non-hold-open push button, an adjustable tailpiece, and a Bak-Chek angle stop. The construction utilizes semi-red brass, meeting ASTM alloy standards.

• Concealed installation for clean aesthetics.
• Durable construction with semi-red brass materials.
• Features adjustable tailpiece for height customization.

Product Highlights

This flushometer is engineered for water efficiency and compliance with industry standards, making it suitable for various commercial settings.

Product Information

Standard Information

• Activation: Handle
• Valve Type: Hydraulic

Technical Specifications

• Product Line: Standard
• Installation: Wall Box, Concealed
• Fixture Type: Water Closet
• Fixture Connection: Offset, Rear Spud
• Valve Body Material: Semi-Red Brass
• Flush Volume: 1.6 GPF
• Water Efficiency: High Efficiency, Low Consumption, Water Saver
• Control Stop: Yes, Less
• Tailpiece: Adjustable
• Vacuum Breaker: Yes, Less
• Bypass: Dual-Filtered Fixed Diaphragm
• Handle: Push Button
• Override: Electrical, True Mechanical
• Special Features: Less Logo
• Compliances & Certifications: ADA Compliant, cUPC Certified, BREEAM Water Credit
• Model #: ROYAL 152-1.6
• Power Type: AC-powered
• LDIM: 2-3/4 inches - 10-3/4 inches
