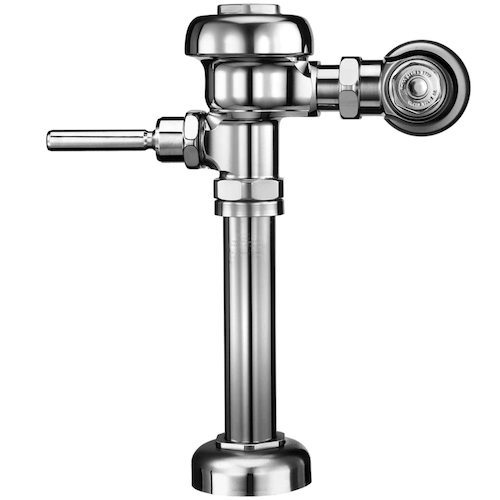

SLOAN VALVE Regal 111 XL 1.6 GPF Exposed Flush Valve Flushometer

Product Description

The SLOAN Regal 111 XL 1.6 GPF Exposed Flush Valve is a quiet, diaphragm-type closet flushometer engineered for durability, water efficiency, and commercial restroom performance. This chrome-plated exposed flushometer is designed for 1.6 gallons per flush operation and incorporates Para Flo Technology to maintain accurate, low-consumption flush performance.

The unit features an ADA-compliant metal oscillating non-hold-open handle and is built without external volume adjustment to help ensure consistent water conservation. The valve body, cover, tailpiece, and control stop conform to ASTM alloy classification for semi red brass and meet the applicable sections of ASSE 1037.

Constructed with high copper, low zinc brass castings for dezincification resistance, the Regal 111 XL is designed for long term reliability in demanding commercial environments. Internal components, including the handle packing, stop seat, and vacuum breaker, are molded from PERMEX rubber compound for enhanced chloramine resistance.

Product Features

• 1.6 GPF low consumption operation

• Quiet, exposed diaphragm type flushometer

• Chrome-plated finish

• ADA-compliant metal oscillating non-hold-open handle

• Para Flo Technology for flush accuracy

• No external volume adjustment

• High copper, low zinc brass castings for dezincification resistance

• PERMEX rubber components for chloramine resistance

Included Components

• 1-inch IPS screwdriver Bak-Chek angle stop

• Control stop plug

• Sweat solder adapter with cover tube

• Adjustable tailpiece

• Cast wall flange with set screw

• Vacuum breaker flush connection

• Spud coupling and spud flange for 1½ inch top spud

Product Information

Standard Information

• Brand: SLOAN

• Model: Regal 111 XL

• MPN: 111

• Flush Volume: 1.6 Gallons Per Flush

• Valve Type: Exposed Diaphragm Flushometer

• Finish: Chrome Plated

• Spud Size: 1½ inch Top Spud

• Compliance: ADA, ASSE 1037

• Material: Semi Red Brass Construction
