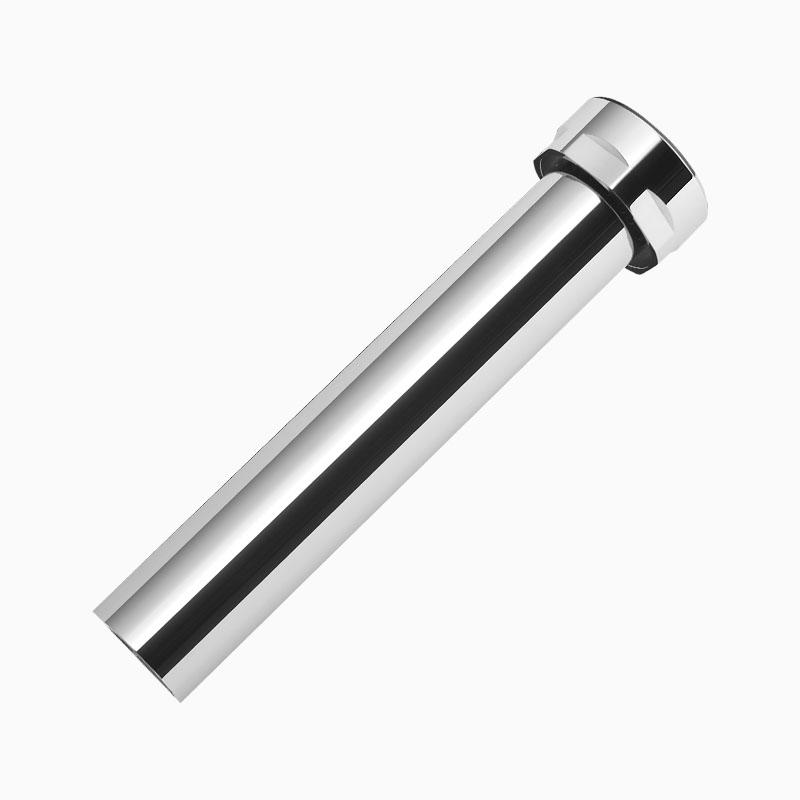

Sloan SLO0323210 Vacuum Breaker 0.75x15 in Tailpiece

Product Description

The SLOAN SLO0323210 is a 3/4-inch by 15-inch vacuum breaker assembly with tailpiece, designed to prevent backflow and siphoning in commercial and institutional plumbing systems. Vacuum breakers of this type are installed on flush valve outlets to protect the potable water supply from contamination caused by back-pressure or back-siphonage. This unit is finished in chrome-plated brass, making it suitable for exposed or semi-exposed installations where appearance and corrosion resistance matter. Licensed plumbers and commercial plumbing contractors are the typical installers of this type of component.

This vacuum breaker tailpiece is used in commercial restroom environments where flush valve assemblies are installed on water closets or urinals. The 3/4-inch connection size and 15-inch tailpiece length are common specifications for standard flush valve configurations found in schools, healthcare facilities, office buildings, and other high-use commercial settings. It is designed as a direct service or replacement component in flush valve plumbing systems.

Key Features

• 3/4-inch inlet connection size fits standard commercial flush valve outlets
• 15-inch tailpiece length suits typical rough-in dimensions in commercial restrooms
• Chrome-plated finish provides corrosion resistance and a clean appearance in exposed installations
• Vacuum breaker function prevents back-siphonage and protects potable water supply
• Compact assembly integrates the vacuum breaker and tailpiece into a single serviceable unit

Compatibility

Designed as an OEM-style replacement or service component for commercial flush valve plumbing assemblies requiring a 3/4-inch by 15-inch vacuum breaker tailpiece configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and flush the line to relieve pressure before removing or installing this component. Inspect the flush valve body and seat for wear before reinstalling. Do not overtighten fittings, as chrome-plated brass connections can be damaged by excessive torque.

Technical Specifications

• Connection Size: 0.75 inches
• Tailpiece Length: 15 inches
• Finish: Chrome-Plated

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: SLO0323210
