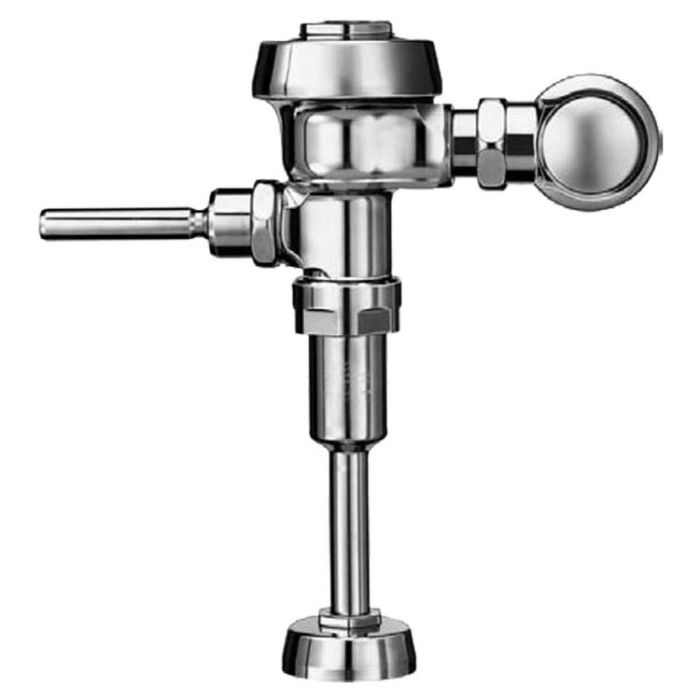

SLOAN Royal186-1 Royal Manual Exposed Urinal Flushometer, For Wall Hung Urinals, 11.5 Rough-In, 3/4 Top Spud, 1.0 GPF

Product Description

The SLOAN Royal186-1 is a manual exposed urinal flushometer designed for wall hung urinals. This model features a rough-in size of eleven point five inches and a three fourths inch top spud connection. It operates at a flush volume of one point zero gallons per flush.

• Durable PERMEX synthetic rubber diaphragm with dual filtered fixed bypass
• ADA compliant metal oscillating non-hold-open handle
• Adjustable tailpiece and high back pressure vacuum breaker

Product Highlights

The flushometer includes several innovative features that enhance performance and durability.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer: SLOAN

Technical Specifications

• MPN: 5550
• Flush Volume: 1.0 gpf / 3.8 Lpf
• Est Weight: 7.40 lbs
• Rough-In Size: 11.5 inches
• Connection Size: 3/4 inch top spud
• Material: High copper, low zinc brass for dezincification resistance
• Compliance: Meets ASSE 1037 and ANSI/ASME A112.19.2 standards
• Energy Use: Manufacturing energy offset with renewable sources
