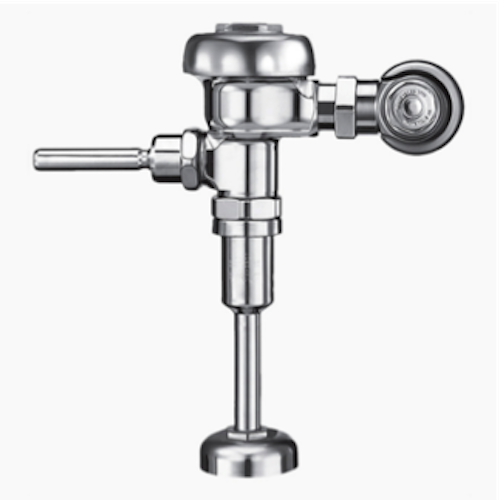

SLOAN Regal 186-0.125-XL-CP Exposed Manual Urinal Flushometer 0.125 GPF Polished Chrome

Product Description

The SLOAN Regal 186-0.125-XL-CP is an exposed manual urinal flushometer designed for water efficient flushing performance in commercial restroom applications. This diaphragm type flushometer delivers a flush volume of 0.125 gallons per flush and features a polished chrome finish for durability and a professional appearance.

Constructed with a semi-red brass valve body for dezincification resistance, this manual flushometer is engineered for long lasting operation and compliance with industry standards. The unit includes an XL sweat solder adapter kit and features a top spud fixture connection with an adjustable tailpiece for installation flexibility.

The ADA compliant non-hold-open handle helps support water conservation by preventing the fixture from exceeding the intended flush volume.

Product Highlights

• Exposed manual urinal flushometer

• 0.125 gallons per flush water saving performance

• Polished chrome finish with semi-red brass construction

• Includes XL sweat solder adapter kit

• ADA compliant non-hold-open handle for water conservation

• Top spud fixture connection with adjustable tailpiece

• Complies with applicable ASSE 1037 requirements

Product Information

Standard Information

• Brand: SLOAN

• Series: Regal

• MPN: 186-0.125-XL-CP

• Product Type: Manual Urinal Flushometer

Technical Specifications

• Flush Volume: 0.125 GPF (0.5 LPF)

• Finish: Polished Chrome

• Valve Type: Diaphragm

• Valve Body Material: Semi-Red Brass

• Fixture Type: Urinal

• Fixture Connection: Top Spud

• Spud Coupling Size: 0.75 inch

• Supply Pipe Size: 0.75 inch

• Rough-In Dimension: 11.5 inches

• Adapter Type: XL Sweat Solder Adapter Kit

• Operating Pressure: 15 to 80 psi

• Handle Type: ADA Compliant Non-Hold-Open

• Compliance Standards: ASSE 1037, ANSI/ASME 112.19.2
