Sloan Led 3988137 Regal 9603 XL MBFW 3.5 gpf rear spud single flush concealed manual water closet hydraulic flushometer

Product Description

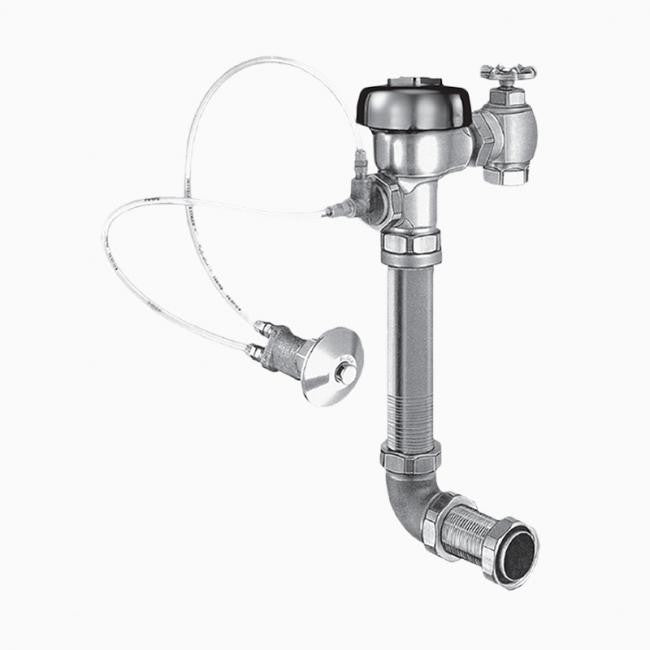

The SLOAN LED 3988137 Regal 9603 XL MBFW is a 3.5 GPF rear spud, single flush, concealed manual water closet hydraulic flushometer. It features a non-hold-open push button, fixed metering bypass, and no external volume adjustment to ensure water conservation. The handle packing, stop seat, and vacuum breaker are molded from PERMEX rubber compound for chloramine resistance. Includes Actuator HY100A-48.

• ADA compliant non-hold-open actuator
• Vacuum breaker included
• 1 Inch I.P.S. wheel handle Bak-Chek angle stop

Product Highlights

This Sloan Regal series flushometer is UPC certified and BAA compliant. It is designed for water closets with a rear spud connection.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 3988137

Technical Specifications

• Flush Type: Concealed Manual
• Spud Placement: Rear
• Finish: Brass Tones
• Material: Brass
• Spud Connection Size: 1.5
• Collection: Regal
• Gallons Per Flush: 3.5
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Flush Volume: 3.5 GPF (13.2 LPF)
• Spud Coupling: 1 1/2 Inch
• Supply Pipe: 1 Inch
• Rough-In Dimension: 16 Inch
• Codes/Standards: UPC Certified, BAA Compliant
