Sloan LED 3918174 Royal 9603 E 3.5 GPF Rear Spud Single Flush Concealed Manual Water Closet Hydraulic Flushometer with 1 Inch Straight Control Stop

Product Description

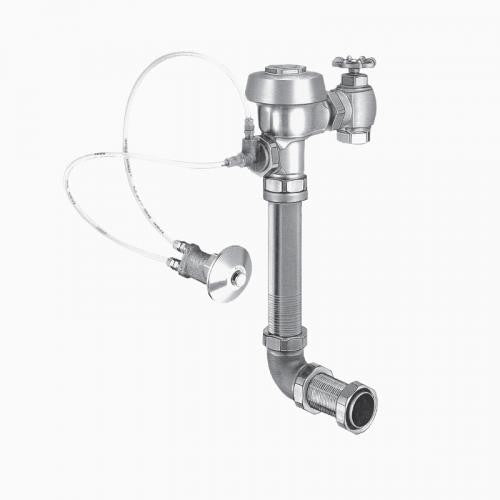

The Sloan LED 3918174 Royal 9603 E is a concealed manual water closet hydraulic flushometer featuring a rear spud connection and a 3.5 GPF flush volume. This reliable unit employs a diaphragm valve for efficient operation and is built to withstand rugged conditions. Its construction includes a valve body, cover, and control stop made from semi-red brass, ensuring durability and compliance with ASTM standards.

• Concealed manual flush operation
• Compatible with rear spud installations
• Constructed from high-quality semi-red brass

Product Highlights

Product Information

Standard Information

• Flush Type: Concealed Manual
• Fixture Type: Water Closet

Technical Specifications

• Fixture Connection: Rear Spud
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Control Stop: 1 Inch Straight
• Flush Volume: 3.5 GPF (13.2 LPF)
• Spud Coupling: 1.5 Inch
• Supply Pipe: 1 Inch
• Rough-In Dimension: 16 Inch
