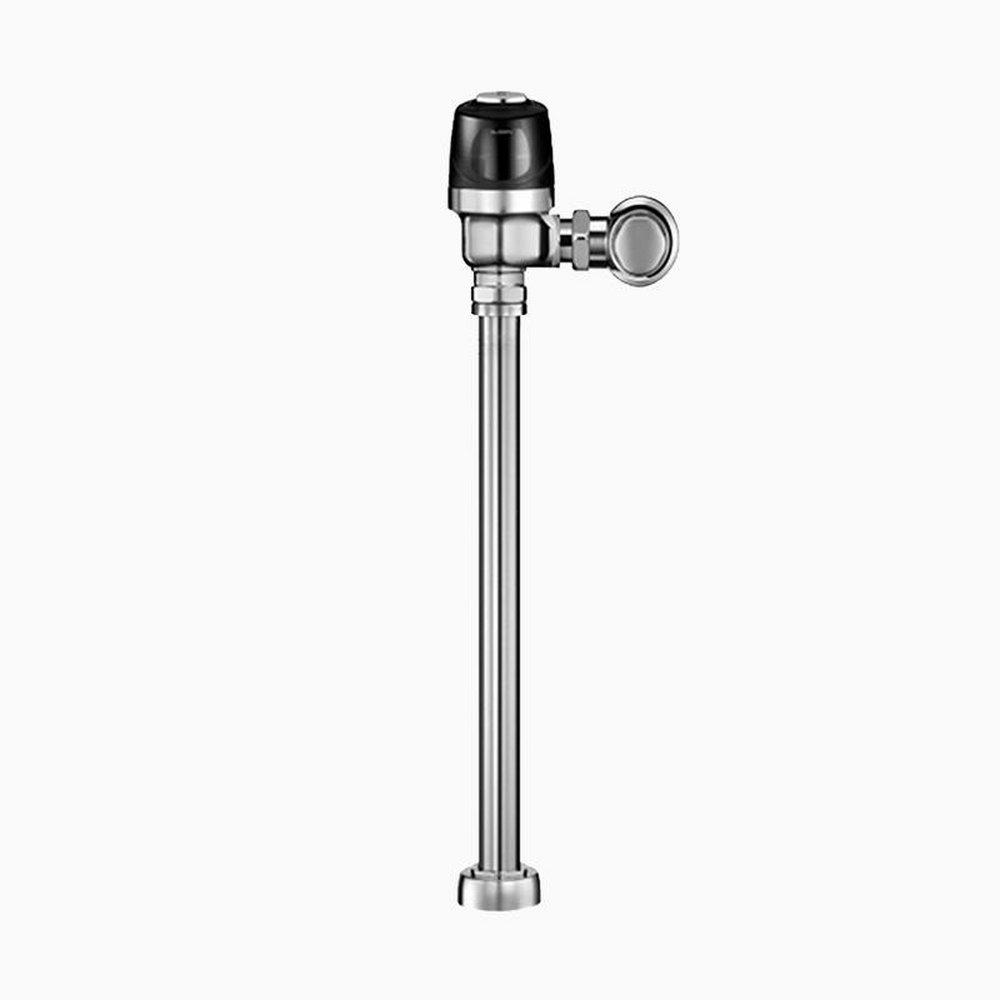

Sloan Led 3790047 Sloan® 1.6 gpf Sensor Flush Valve

Product Description

The SLOAN LED 3790047 Sloan® 1.6 gpf Sensor Flush Valve features a high chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and vortex cleansing action. It has an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection and an engineered plastic cover with replaceable lens window.

• High chloramine resistant PERMEX® synthetic rubber diaphragm
• Infrared sensor with multiple-focused, lobular sensing fields
• Engineered plastic cover with replaceable lens window

Product Highlights

This sensor flush valve is designed for water closets and includes a user-friendly three-second flush delay and a low battery flashing LED.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 3790047

Technical Specifications

• ADA Compliant: Yes
• ANSI: ANSI A112.19.2
• ASME: ASME A112.19.2
• BAA Compliant: Yes
• Battery Size: AA
• CARB OTC LEED Compliant: No
• Collection: Sloan
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Dual Flush: No
• Fitting Size 1: 1
• Fitting Sizes: 1 in
• Flow Rate: 1.6 gpf
• Flow Rate Range: Greater than 1.5 gpf
• Flush Type: Sensor
• Flush Valve Application: Water Closet
• GSA Approved: No
• Handle Type: Button
• Height: 4-1/4
• IAPMO Listed: Yes
• Length: 26-1/4
• Material: Brass
• NSF Certified: No
• PipeTubing Size: 1
• Power Source: Battery
• Proposition 65: WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
• Spud Location: Top
• Spud Size: 1-1/2
• UPC: 671254317420
• Valve Body Material: Semi-red Brass
• WaterSense Labeled: No
• Width: 9-1/4
