Sloan Led 3789000 613-1 10 3/4 Ldim manual urinal flushometer 1.0 GPF

Product Description

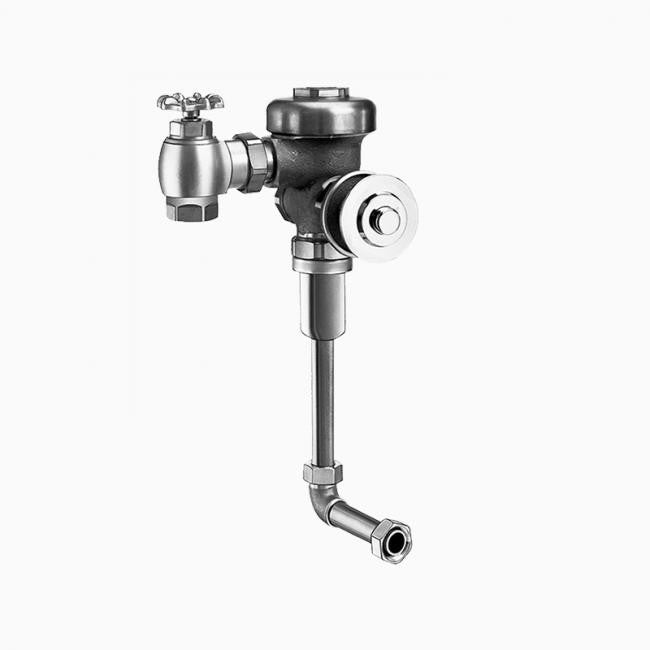

The Sloan LED 3789000 613-1 10 3/4 Ldim is a top spud single flush concealed manual urinal flushometer. It features the performance benefits of standard concealed, diaphragm model Flushometers with added durability. The diaphragm, handle packing, stop seat and vacuum breaker are molded from PERMEX rubber compound for chloramine resistance. Valve body, cover, tailpiece and control stop are in compliance with ASTM Alloy Classification for Semi-Red Brass.

• Flush volumes as low as 0.5 GPF/1.9 LF meet water-efficiency goals
• Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
• High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action

Product Highlights

Manual urinal flushometer with a low consumption of 1.0 GPF and a semi-red brass valve body.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 3789000

Technical Specifications

• Flush Type: Manual
• Fixture Connection: Wall
• Flush Mechanism: Single
• Flush Volume: 1 GPF
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Water Efficiency: Low Consumption
• Spud Placement: Top
• Material: Brass
• Spud Connection Size: 0.75
• Gallons Per Flush: 1
• Codes/Standards: cUPC Certified, BAA Compliant
