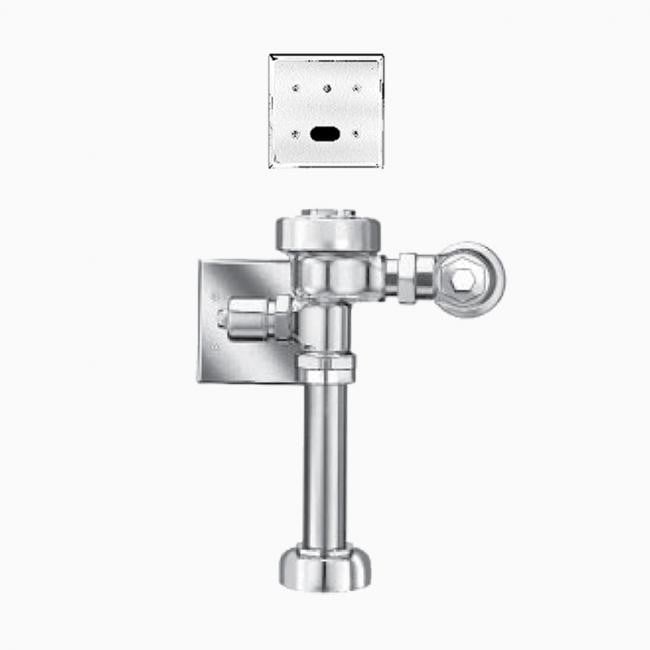

SLOAN LED 3580010 Regal 1.28 GPF Top Spud Single Flush Exposed Sensor Hardwired Water Closet Flushometer with Electrical Override and XL Sweat Solder Adapter Kit

Product Description

The SLOAN LED 3580010 Regal is designed for efficiency. This model features a 1.28 GPF top spud single flush exposed sensor. It includes an electrical override and XL sweat solder adapter kit. It is engineered to meet water-efficiency goals.

• Flush volume is set at 1.28 GPF (4.8 Lpf).
• Includes an ADA-compliant, non-hold-open handle for maximum conservation.
• Utilizes Para-Flo technology for precise flush accuracy.

Product Highlights

This flushometer provides effective waste removal while adhering to water conservation standards.

Product Information

Standard Information

• Brand: SLOAN LED
• MPN: 3580010

Technical Specifications

• Valve Body Material: Semi Red Brass
• Power Type: Hardwired
• Flush Type: Single Flush
• Valve: Diaphragm
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Override: Electrical
• Flush Volume: 1.28 GPF (4.8 Lpf)
• Rough-In: 11.5 inches
• Spud Coupling: 1.5 inches
• Supply Pipe: 1 inch
• ADA Compliant: Yes
• ANSI: ANSI 112.19.2
• ASME: ASME 112.19.2
• BAA Compliant: Yes
• Collection: Regal
• End Connections: Threaded
• Fitting Size: 1 inch
• Flow Rate: 1.28 GPF
• Pressure - Maximum: 80 psi
• Pressure - Minimum: 15 psi
• Spud Size: 1.5 inches
• Volts: 24V
• WaterSense Labeled: Yes
