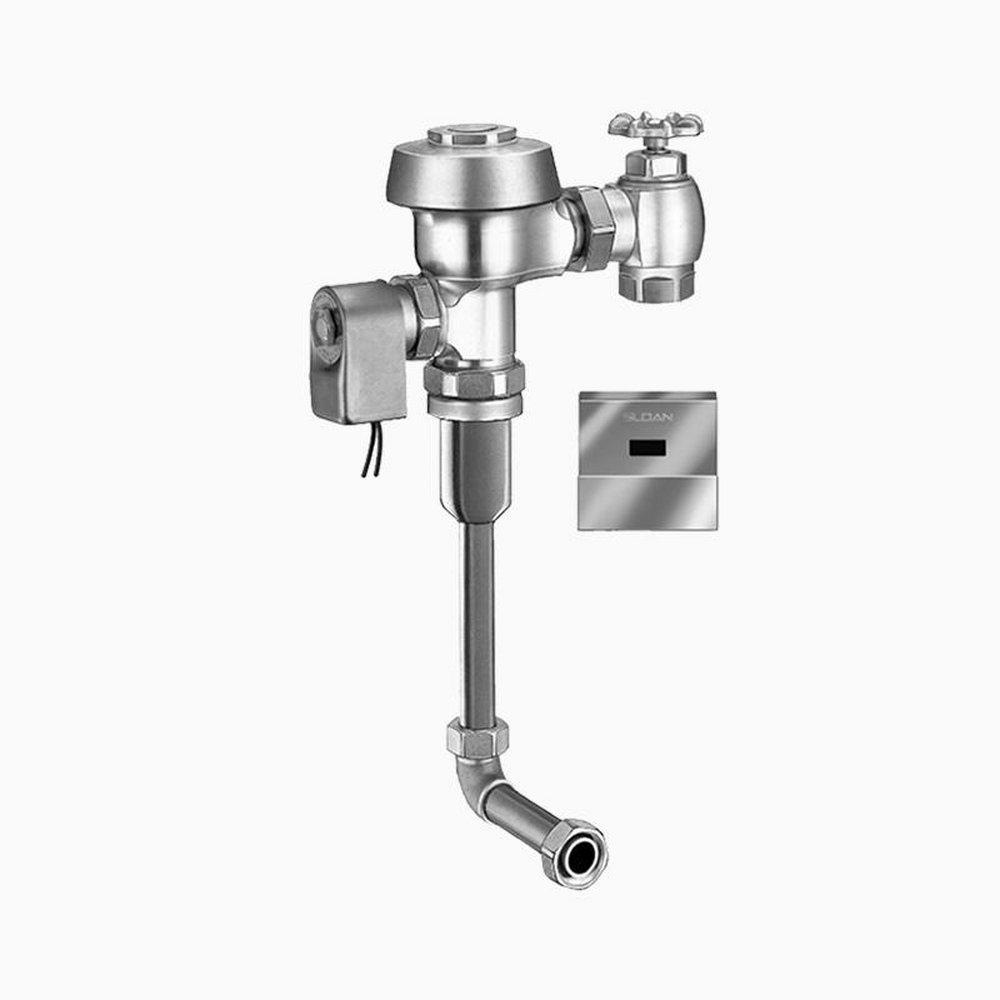

Sloan Led 3453201 Royal 195-1 2-10 3/4 Ldim Ess Single Flush Concealed Sensor Urinal Flushometer, Hardwired, 1 Gpf, 3/4 Inch Ips Inlet, 3/4 Inch Spud

Product Description

The Sloan LED 3453201 Royal 195-1 2-10 3/4 LDIM ESS is a single flush concealed sensor urinal flushometer. This hardwired unit features a 1 GPF flush volume, a 3/4 inch IPS inlet, and a 3/4 inch spud connection. It operates between 15 to 80 PSI and includes a self-adaptive infrared sensor with indicator light.

• PERMEX synthetic rubber diaphragm with dual filtered fixed bypass
• High copper, low zinc brass castings for dezincification resistance
• Flush accuracy controlled by CID technology

Product Highlights

This Sloan Royal urinal flushometer offers water conservation and durability with its sensor operation and dezincification-resistant brass castings.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 3453201
• Country of Origin: US

Technical Specifications

• Flush Type: Concealed / Electronic / Urinal
• Finish: Brass Tones
• Material: Brass
• Spud Connection Size: 0.75
• Collection: Royal
• Gallons Per Flush: 1
• ADA Compliant: Yes
• ANSI: ANSI A117.1
• ASME: ASME A112.19.6
• Flow Rate: 1.0 gpf
• Flush Valve Application: Urinal
• Power Source: Hardwired
• Spud Location: Rear
• Spud Size: 3/4 in
• WaterSense Labeled: No
• Basic Power: Hardwired
• Product Line: Royal
• Sensor Type: Sensor Operated
