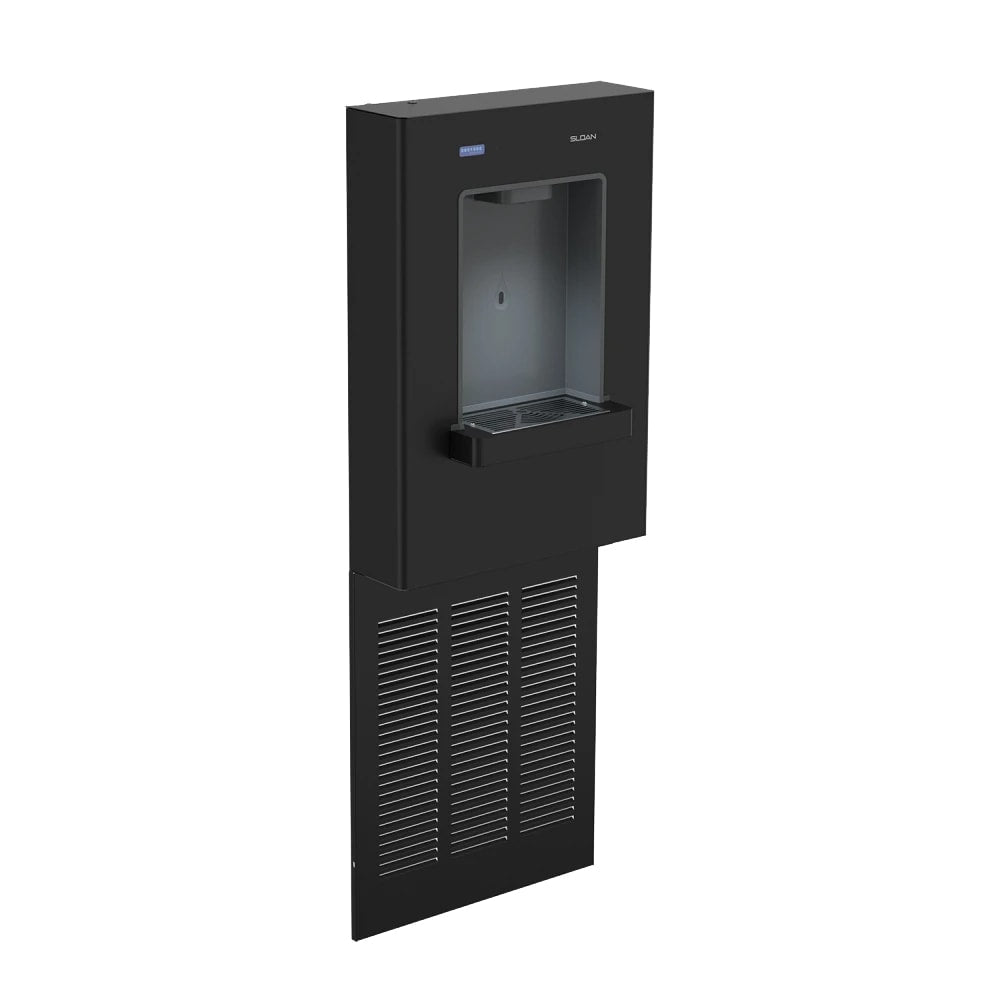

Sloan Led 33820028 DropSpot 8 GPH Black Powder-Coated Steel Wall-Mount Hands-Free Filtered Bottle Filling Station - 115V

Product Description

The Sloan LED 33820028 DropSpot filtered hands-free chilled bottle filling station is made with durable, galvannealed steel with a black powder-coated finish. This wall-mounted, refrigerated bottle filler provides 8 gallons of approximately 50 degree Fahrenheit chilled water per hour. It features sensor-activated operation for sanitary, hands-free bottle-filling from a laminar flow water supply and includes a filter designed to filter up to 3,000 gallons of water.

• Sanitary, hands-free, sensor-activated bottle filling
• 8 GPH chilled capacity with quick fill rate and 20-second max run time
• Backlit LED light illuminates filling area when sensor is activated

Product Highlights

This bottle filling station features a quick fill rate of up to 1.2 gallons per minute and a 20-second max run time to limit waste. It requires a 115V electrical connection for operation.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 33820028

Technical Specifications

• Amps: 5.3 Amps
• Hertz: 60 Hz
• Phase: 1 Phase
• Voltage: 115 Volts
• Dispenser Style: Sensor
• Features: ADA Compliant, Filtered Water, Hands Free
• Finish: Powder-Coated
• Flow Rate: 1.2 GPM
• Material: Steel
• Mounting Style: Wall Mounted
• Output: 8 Gallons per Hour
• Plug Type: NEMA 5-15P
• Type: Bottle Fillers
• Usage: Indoor
• Water Inlet Size: 3/8 Inches
• Water Type: Chilled Water
• Filter: 3000 gallon
• Effectively reduces: PFOA, PFOS, lead, microplastic, cyst, particulate class 1, chlorine, and odor
• Certified to comply with: NSF-42, NSF-53, and NSF-401 standards
• Prop 65 compliant: Yes
• Manufacturer: Sloan
• Application: Indoor
• Mounting Location: Wall
• Number of Levels: 1
• Operation: Sensor
• Product: Bottle Filling Station
• Product Type: Commercial Plumbing Supplies
• Refrigeration Type: Refrigerated
• Series: DropSpot™
• Special Features: Universal Rough In Measurements
• Mounting Type: Wall
• Additional Information: Galvannealed/Powder-Coated Finish, Without Remote Chiller
• Amperage Rating: 5.3 A
• Cooling Capacity: 8 gph
• Fill Rate: 1.2 gpm
• Frequency Rating: 60 Hz
• Housing Material: 304 Stainless Steel
• Installation Location: Indoor
• Overall Depth: 51.4 in
• Overall Length: 7.9 in
• Overall Width: 19 in
• Voltage Rating: 115 V
