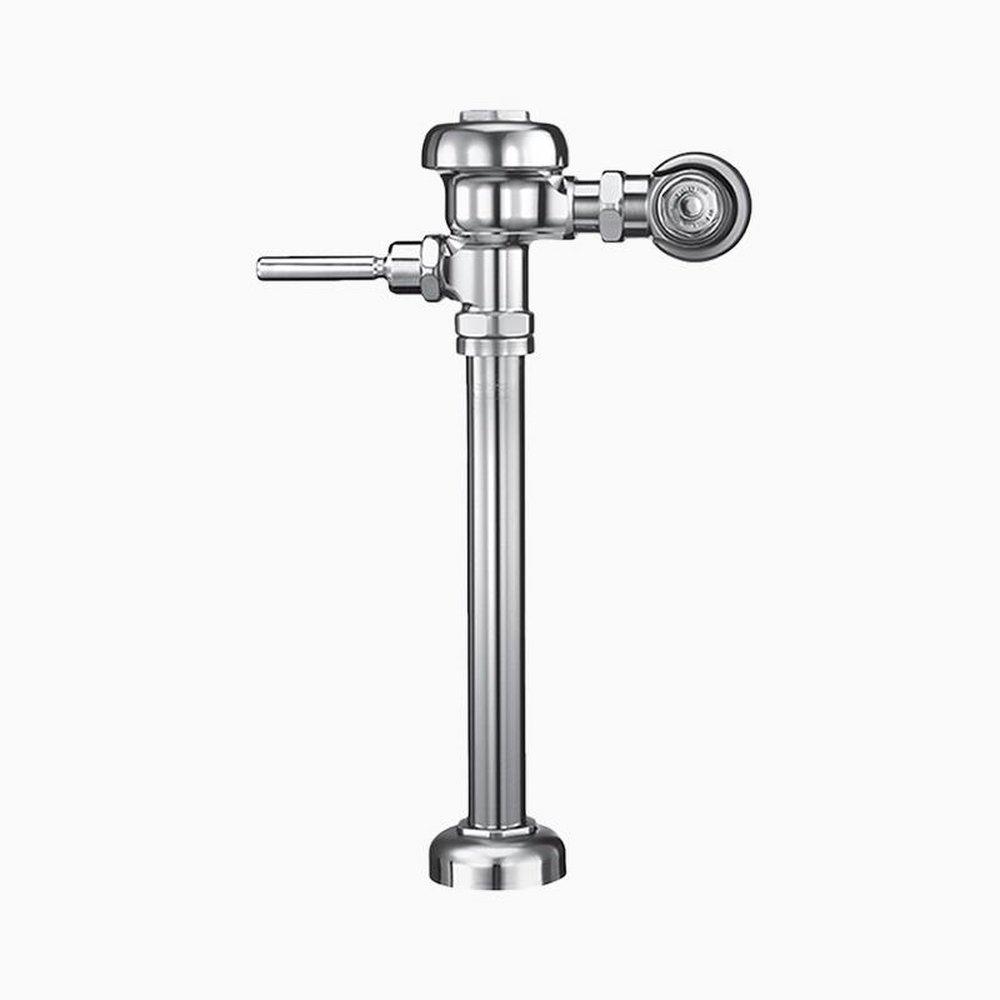

Sloan Led 3080320 Regal® 1.28 gpf Exposed Manual Water Closet Flushometer

Product Description

The SLOAN LED 3080320 Regal® is a manual exposed flushometer for floor mount or wall hung water closets with a 24" rough in. It features a low consumption flush accuracy controlled by Para-Flo Technology. The valve body, cover, tailpiece, and control stop comply with ASTM Alloy Classification for Semi-Red Brass. The valve complies with applicable sections of ASSE 1037.

• Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Low Consumption flush accuracy controlled by Para-Flo Technology

Product Highlights

This manual flushometer features adjustable tailpiece and high copper, low zinc brass castings for dezincification resistance. ADA compliant.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 3080320

Technical Specifications

• ADA Compliant: Yes
• ANSI: ANSI A112.19.2
• ASME: ASME A112.19.2
• BAA Compliant: Yes
• CARB OTC LEED Compliant: No
• Collection: Regal®
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Flow Rate: 1.28 gpf
• Flow Rate Range: 1.0 gpf - 1.5 gpf
• Flush Type: Manual
• Flush Valve Application: Water Closet
• GSA Approved: No
• IAPMO Listed: Yes
• NSF Certified: No
• Pressure - Maximum: 80 psi
• Spud Location: Top
• Spud Size: 1-1/2 in
• Valve Body Material: Semi-red Brass
• Valve Size: 1 in
• WaterSense Labeled: Yes
