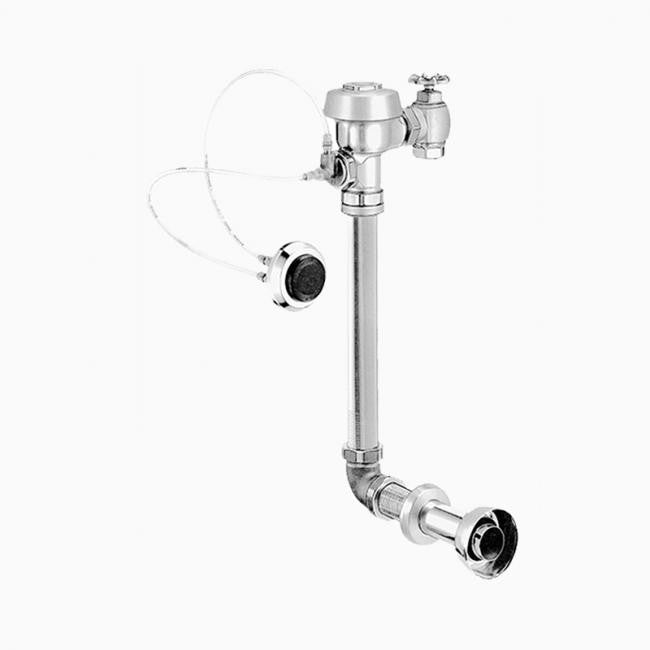

Sloan Led 3013400 Royal 940 2-10 3/4 Ldim 3.5 gpf Top Spud Single Flush Concealed Manual Water Closet Hydraulic Flushometer

Product Description

The Sloan LED 3013400 Royal 940 is a concealed manual water closet hydraulic flushometer with a top spud. It is designed for single flush operation and delivers 3.5 GPF. Features include a vacuum breaker with flush connection, and handle packing molded from PERMEX rubber compound for chloramine resistance. It also has a double slip elbow flush connection for a 1 1/2 Inch exposed back spud.

• Vacuum breaker with flush connection
• Handle packing, main seat, stop seat and vacuum breaker molded from PERMEX rubber compound for chloramine resistance
• Double slip elbow flush connection for 1 1/2 Inch exposed back spud

Product Highlights

This Sloan Royal 940 flushometer is ADA and BAA compliant and UPC certified. It features a 1 Inch I.P.S. wheel handle Bak-Chek angle stop.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 3013400

Technical Specifications

• Flush Type: Concealed Manual
• Spud Placement: Top
• Finish: Brass Tones
• Material: Brass
• Spud Connection Size: 1.5
• Collection: Royal
• Gallons Per Flush: 3.5
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Flush Volume: 3.5 GPF (13.2 LPF)
• Spud Coupling: 1 1/2 Inch
• Supply Pipe: 1 Inch
• Rough-In Dimension: 14 1/2 Inch
• L Dimension: 2 Inch to 10 3/4 Inch
