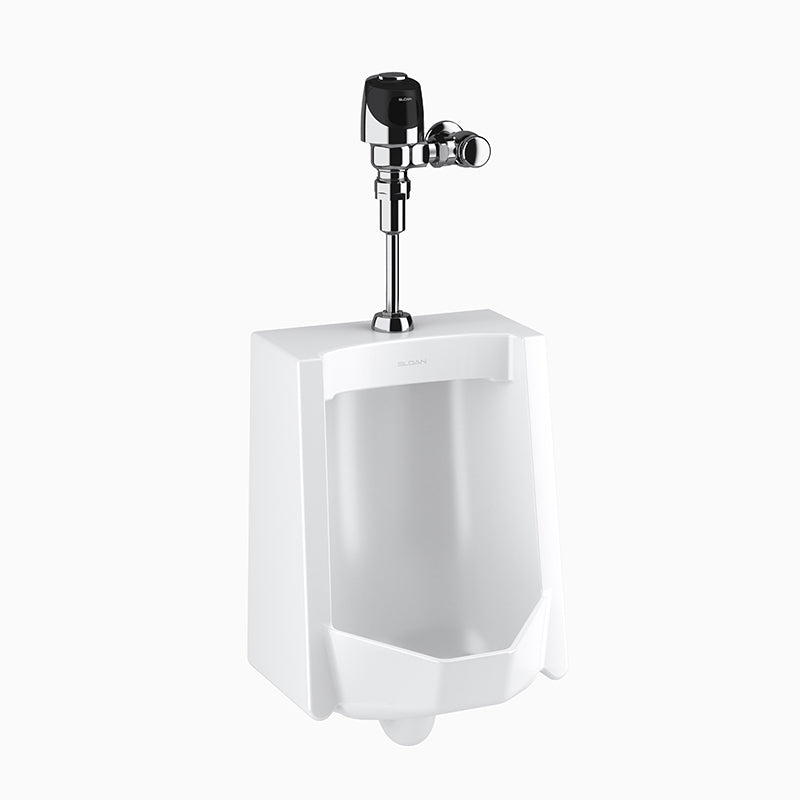

Sloan Led 10001415 weus1000.1415 su1009 wall mount urinal and 8186 flushometer

Product Description

The Sloan LED 10001415 WEUS1000.1415 SU1009 is a wall mount urinal and 8186 flushometer. It features a vacuum breaker with flush connection, spud coupling, and flanges for a 3/4 Inch top spud. The urinal is made of white vitreous china with washdown flushing action and an integral flushing rim. Mounting hardware is included.

• ADA Compliant and WaterSense Certified
• Features a low battery flashing LED and courtesy flush override button
• Includes vandal resistant strainer assembly

Product Highlights

This Sloan urinal and flushometer combination offers water conservation and vandal resistance. The infrared sensor ensures reliable flushing.

Product Information

Standard Information

• Brand: SLOAN LED
• Manufacturer Part Number: 10001415

Technical Specifications

• Type: Urinal
• Features: ADA Compliant / WaterSense Certified
• Installation Type: Wall Mounted
• Theme: Transitional
• Material: Vitreous China
• Bowl Height: ADA Compliant / Adjustable
• Finish: White
• Gallons Per Flush: 0.125 GPF
• Lever Placement: Sensor Activated / Top
• Flush Volume: 0.125 gpf (0.5 Lpf)
