Product Description

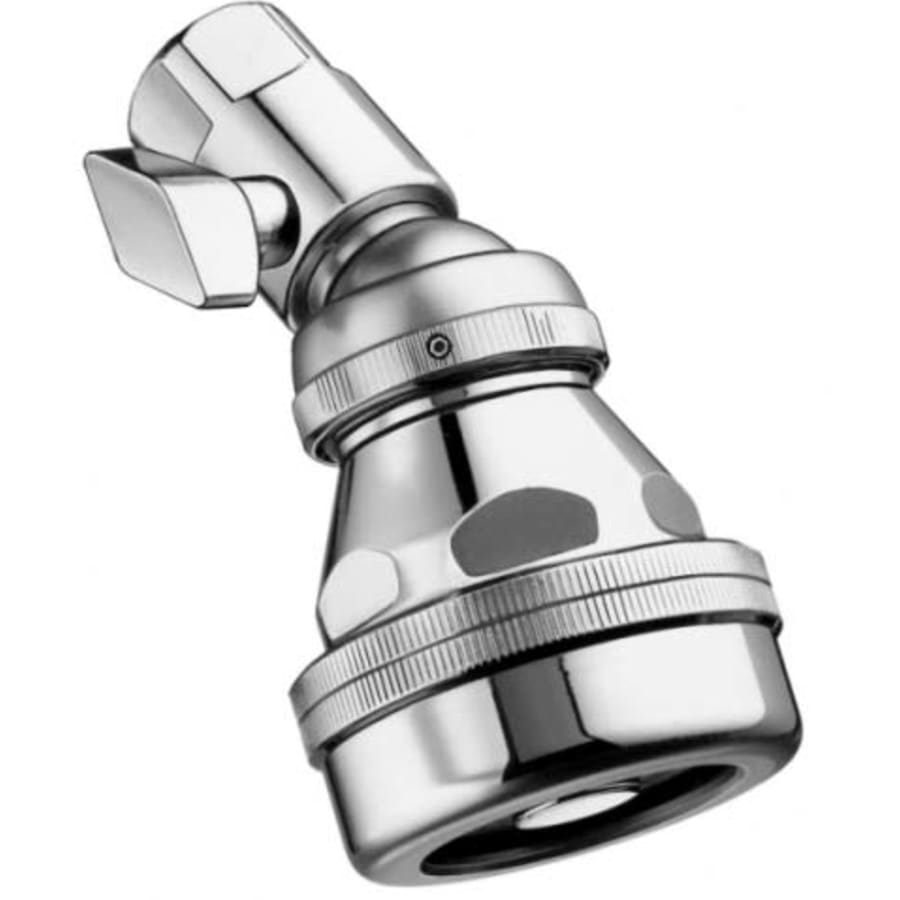

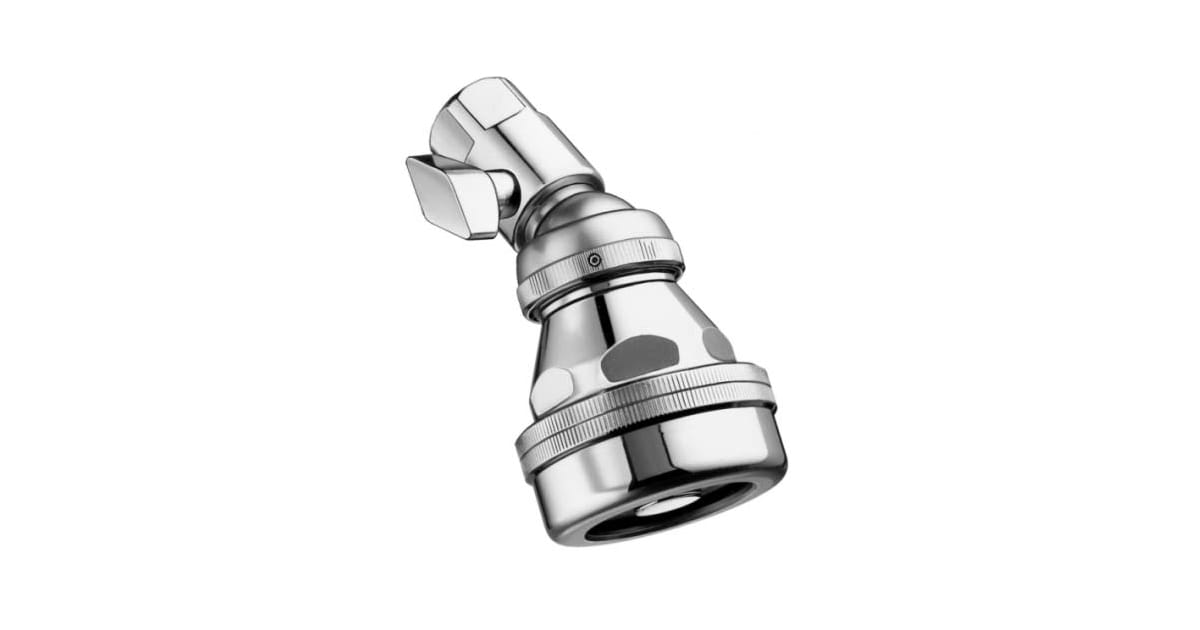

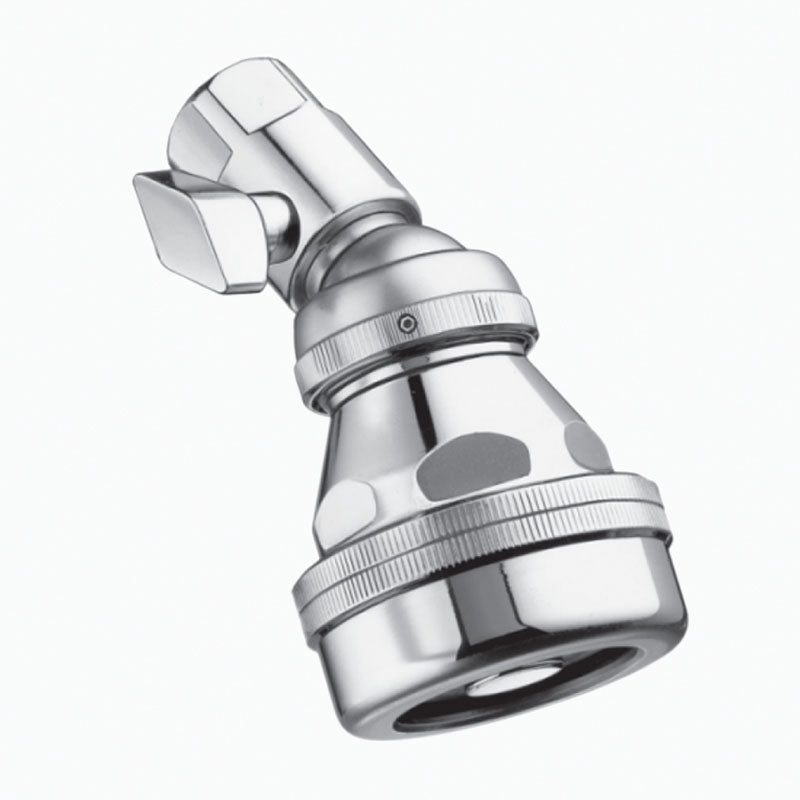

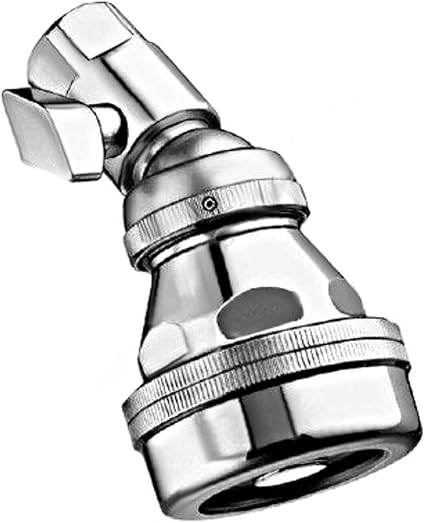

The Sloan 4020130 is an Act-O-Matic PVD-plated brass shower head (MPN 4020130) that uses a spring-loaded, self-cleaning spray disk and a cone-within-a-cone spray pattern for full-body coverage. It features a pressure-compensating 2.5 gpm (9.4 lpm) flow control, a universal ball joint with thumb-screw volume control, and a 1/2" I.P.S. inlet. The unit is constructed of all brass and conforms to ANSI/ASME A112.18.1M, CSA B-125, and U.S. Federal Energy Policy Act standards.
- Spring-loaded, self-cleaning spray disk to prevent particle clogging
- Pressure-compensating 2.5 gpm / 9.4 lpm flow control with cone-within-a-cone spray pattern
- All-brass construction with universal ball joint and thumb-screw volume control; 1/2" I.P.S. inlet
Product Highlights
Act-O-Matic PVD-plated brass shower head; 2.5 gpm pressure-compensating flow; self-cleaning spray disk; 1/2" I.P.S. inlet; conforms to ANSI/ASME A112.18.1M and CSA B-125
Product Information
Standard Information
-
Brand: SLOAN
-
Manufacturer Part Number: 4020130
-
Country of Origin: United States
Technical Specifications
-
Brand: Sloan
-
Manufacturer Part Number: 4020130
-
Series: AC11-2.0
-
Item Type: Showerhead
-
Material: Brass
-
Finish: PVD plated polished brass
-
Construction: All brass
-
Flow Rate: 2.5 gpm / 9.4 lpm
-
Flow Rate (GPM): 2.5 gpm
-
Flow Rate (L/min): 9.4 lpm
-
Pressure Compensation: Pressure-compensating
-
Self-cleaning: Spring-loaded self-cleaning spray disk
-
Spray Pattern: Cone-within-a-cone
-
Spray Settings: Single function
-
Control: Universal ball joint with thumb-screw volume control
-
Connection Size: 1/2" I.P.S.
-
Overall Width: 2-1/2"
-
Overall Height: 4-1/2"
-
Item Weight: 1.38 lbs
-
Standards and Approvals: ANSI/ASME A112.18.1M; CSA B-125; United States Federal Energy Policy Act
-
Intended Applications: Commercial and restroom applications
