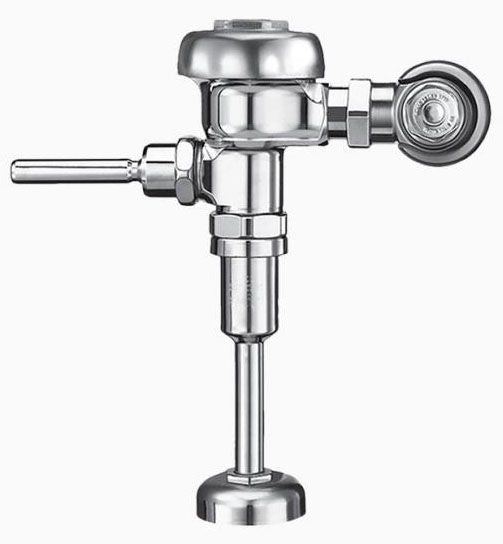

Sloan 3982628 Regal 186-0.5-XL Manual Flushometer 0.5 GPF Polished Chrome

Product Description

The Sloan Regal 186-0.5-XL Urinal Flush Valve features robust construction with a polished chrome finish. Ideal for commercial restrooms, this manual flushometer ensures water conservation and hygienic operation.

• Complies with ADA requirements for accessibility.
• Features a non-hold-open handle and no external volume adjustment to prevent water waste.
• High copper, low zinc brass construction for dezincification resistance.

Product Highlights

Equipped with an oscillating non-hold-open handle and a vacuum breaker flush connection, the Sloan Regal 186-0.5-XL is designed for durability and efficient operation in high-traffic areas. Provides a water-saving flush of 0.5 gallons per flush.

Product Information

Standard Information

• Material: High copper, low zinc brass
• Finish: Polished Chrome

Technical Specifications

• Flush Rate: 0.5 GPF
• Inlet Size: 3/4 inch IPS
• Spud Coupling: 3/4 inch
• Pressure Range: 15 to 100 psi
• Installation Type: Exposed top spud urinal
• Compliance: ADA, CSA, ASSE 1037
