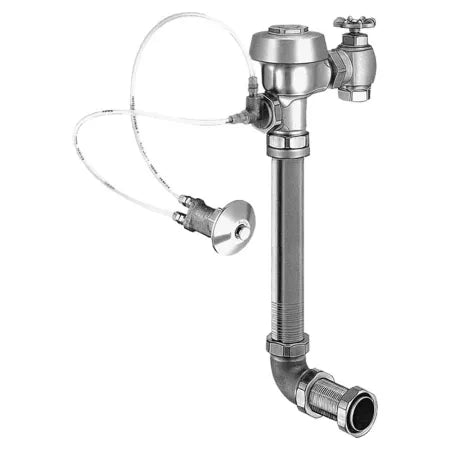

Sloan 3918984 Royal 9611-1.6 Manual Concealed Flushometer

Product Description

The Sloan 3918984 is a manual concealed flushometer, part of the Royal 9611 series, designed for water closet fixtures. This single-flush model operates at a flush rate of 1.6 gallons per flush (gpf) and features a one-inch inlet and a one-and-a-half-inch spud coupling. The unit is built to withstand pressures ranging from 15 to 80 psi and includes a diaphragm valve design for efficient flushing.

• Durable construction made from semi-red brass.
• Non-hold open oscillating handle enhances usability.
• Meets water efficiency standards with low flush volume.

Product Highlights

This flushometer is suitable for institutional and commercial settings, made to last in challenging environments. Its diaphragm, handle packing, and vacuum breaker are made from PERMEX rubber, providing resistance against chloramines. The vandal-proof design includes options for ADA-compliant actuator operation, making it ideal for various installation requirements.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Type: Single-Flush

Technical Specifications

• Finish: Rough Brass
• Fixture Type: Water Closet
• Flush Rate: 1.6 gpf
• Inlet Size: 1 in IPS
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 24 in
• Spud Coupling: 1-1/2 in
• Connection Location: Top Spud
