Sloan 3915513 Royal 995-0.5 2-10 3/4 Ldim

Product Description

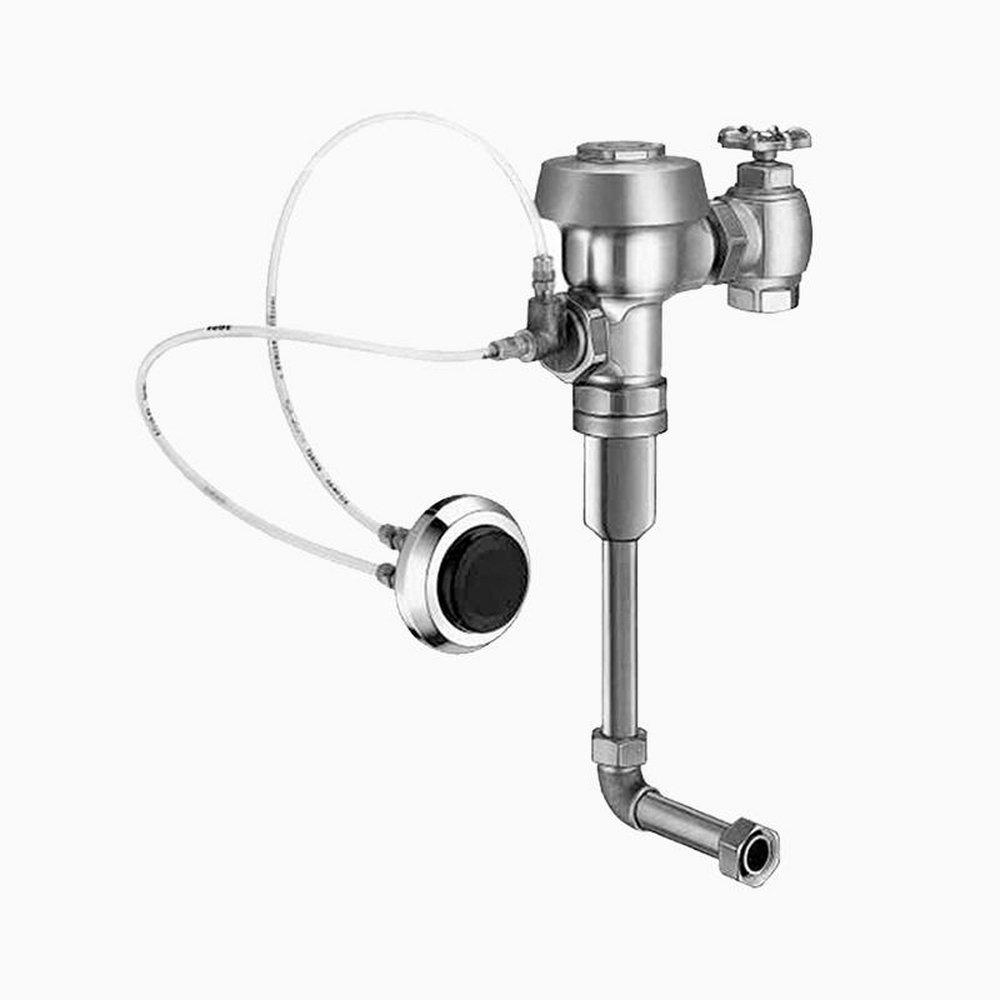

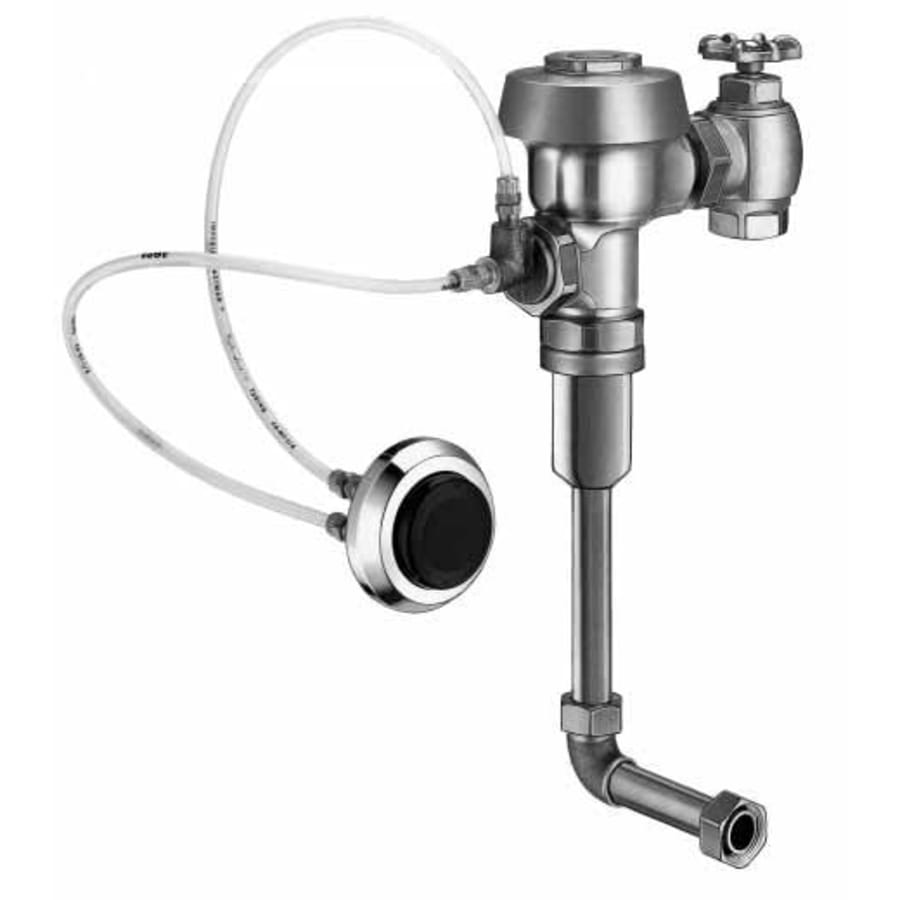

The SLOAN 3915513 Royal 995-0.5 2-10 3/4 Ldim is a concealed, diaphragm type, rough brass urinal flushometer designed for left or right hand supply. It features a dual filtered by-pass and an ADA compliant non-hold-open actuator. Actuators must be purchased separately.

• Various types of push-button Flushactuators, which can be remotely Ositioned
• Flush volumes start as low as 1.0 gF/3.8 LF
• Water conservation is aided by the ADA-compliant, non-hold-open actuator, Vandal-resistant stop cap to facilitate security

Product Highlights

This concealed urinal flushometer features a dual filtered by-pass, adjustable tailpiece and a vacuum breaker. It is ADA compliant and made from rough brass.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3915513
• Country of Origin: United States

Technical Specifications

• Category: Flushometer
• Volume: 0.413
• Fixture Mount: Wall
• Fixture Type: Urinal
• Installation Place: Concealed
• Finish: Rough Brass
• Brand: Sloan
• Manufacturer: Sloan
• Model #: ROYAL 995-0.5
• Manufacturer Part #: 3915513
• UPC Code: 671254203884
• Flow Rate: 0.5 GPF (gallons-per-flush)
• Rated Operating Pressure: 25-100 PSI
• Configuration: Hydraulic
• Control Type: Manual
• Installation Type: Urinal
• Material: Metal
• Spud Placement: Rear
• ADA: Yes
• ANSI Certification: A112.19.6
• Approved for Commercial Use: Yes
• ASSE Code: 1037
• CA Drought Compliant: No
• Certifications: ASSE, UPC, ANSI
• Eco Friendly: Yes
• Made in America: Yes
• TX Drought Compliant: Yes
• Flush Rate: 0.5 gpf
• Inlet Size: 3/4 in IPS
• Pressure Rating: 15 to 80 psi
• Spud Coupling: 3/4 in
• Connection Location: Top Spud
• Handle Type: Non-Hold Open Oscillating
• Rough-In Size: 13-1/2 in
• Series: 995
• Type: Single-Flush
• Valve Design: Diaphragm
• Spud Size: 3/4
• Part Number: 3915513
• MFR #: 3915513
• Zoro #: G9748731
• UPC #: 671254203884
