Sloan 3914817 Royal 952-1.6 2-10 3/4 LDIM

Product Description

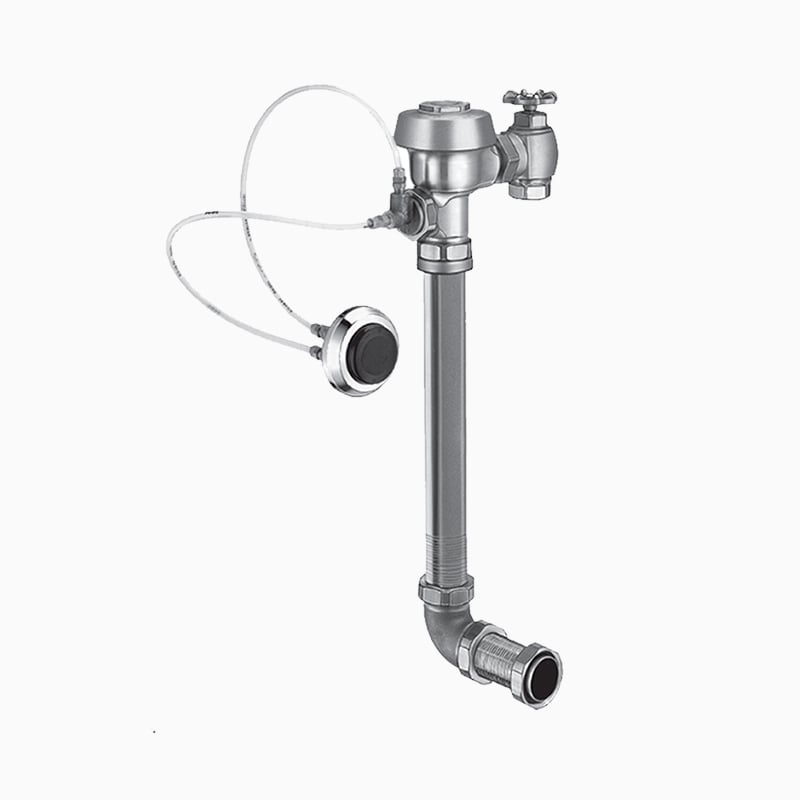

Sloan, 3914817, is a manual concealed flushometer designed for water closet fixtures. It features a 1.6 gallons per flush (gpf) rating, allowing efficient water usage. This model uses a diaphragm valve design and has a connection location at the top spud. The flushometer operates within a pressure range of 15 to 80 psi and includes a non-hold open handle made of semi-red brass.

• 1.6 gpf flush for efficient water usage
• ADA compliant non-hold open actuator
• Vandal-resistant stop cap for security

Product Highlights

This product is ideal for high-traffic restrooms, ensuring reliable flushing with minimal water waste.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Model: 952

Technical Specifications

• Connection Location: Top Spud
• Domestic/Import: Domestic
• Flush Rate: 1.6 gpf
• Inlet Size: 1 in IPS
• Material: Semi-Red Brass
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 24 inches
• Spud Coupling: 1-1/2 inches
• Valve Design: Diaphragm
• Series: 952
