Sloan 3912753 Royal 186-0.125 SFSM HW

Product Description

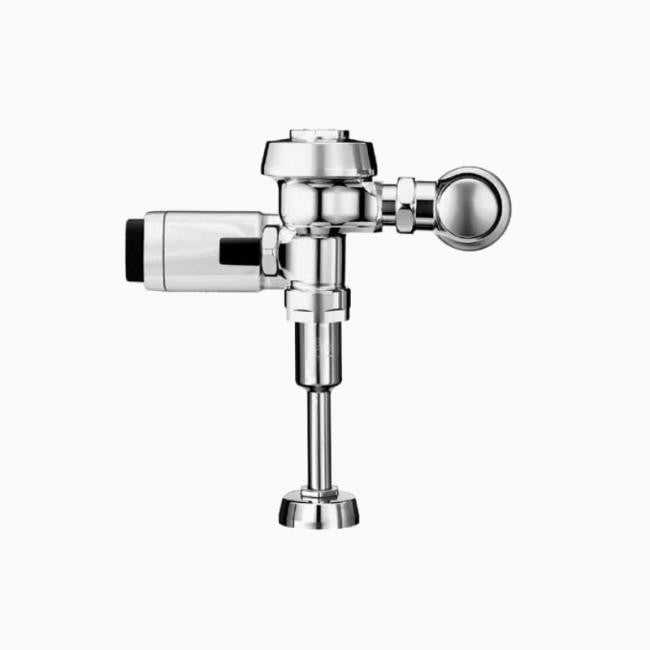

The Sloan Royal 186-0.125 SFSM HW is a sensor exposed flushometer designed for urinals. This model from Sloan Valve Co operates with a hardwired power source and features a flush rate of 0.125 gallons per flush. The inlet size is three-fourths inches IPS, with a top spud connection. It is suitable for installations requiring an eleven and a half inches rough-in. The diaphragm valve design ensures reliable performance.

• Includes wall plate and a purple wall flange for reclaimed water indications.
• Constructed from semi-red brass for durability.
• Complies with ADA, ASSE, and UPC standards.

Product Highlights

This flushometer is ideal for commercial settings where efficient water usage is a priority. It effectively meets plumbing code requirements while providing a modern touch.

Product Information

Standard Information

• Brand: Sloan Valve Co
• Type: Single-Flush

Technical Specifications

• Connection Location: Top Spud
• Finish/Color: Polished Chrome
• Fixture Type: Urinal
• Flush Rate: 0.125 gpf
• Inlet Size: 3/4 in IPS
• Material: Semi-Red Brass
• Power Source: Hardwired
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Sensor Range: 22 to 42 in
• Series: 186
• Spud Coupling: 3/4 in
