Sloan 3912716 Royal 186-0.5 Smooth Hardwire

Product Description

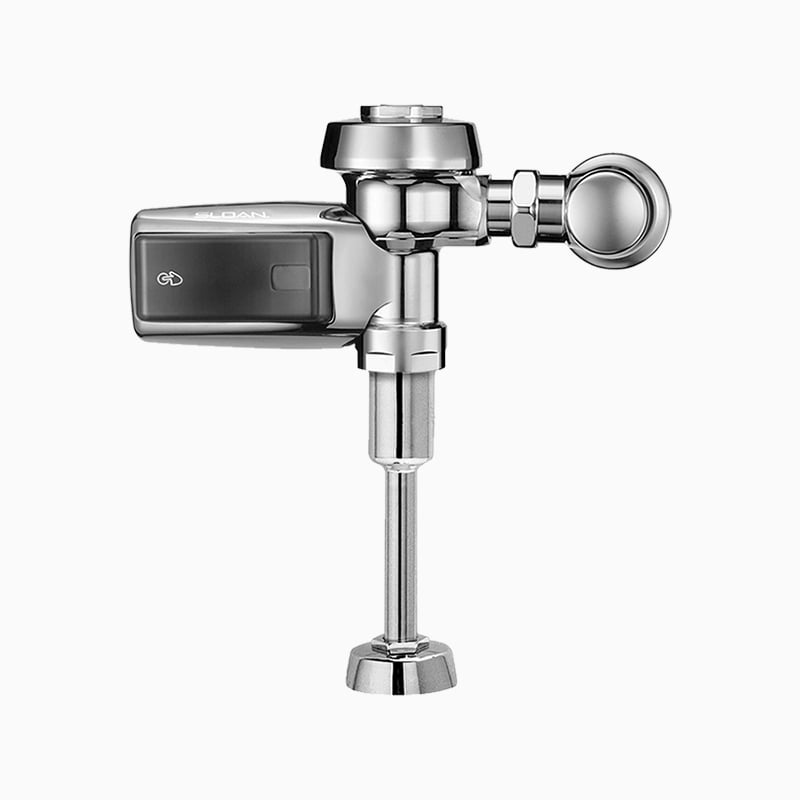

The Sloan valve company manufactures the Royal 186-0.5 smooth hardwire flushing mechanism, MPN 3912716. This product is designed as an exposed flushometer specifically for urinal applications.

• Includes required wall plate and purple wall flange for reclaimed water indication.
• Features a hardwired power source with a dual filtered fixed bypass diaphragm.
• Meets various compliance standards including ADA and WaterSense.

Product Highlights

This flushometer operates at a flush rate of 0.5 gallons per flush and is constructed of semi-red brass with a polished chrome finish.

Product Information

Standard Information

• Brand: Sloan
• MPN: 3912716

Technical Specifications

• Flush Rate: 0.5 gpf
• Material: Semi-Red Brass
• Power Source: Hardwired
• Fixture Type: Urinal
• Rough-In Size: 11-1/2 inches
• Pressure Rating: 25 to 80 psi
• Sensor Range: 26 to 32 inches
• Connection Location: Top Spud
• Handle Type: Non-Hold Open Oscillating
• Collection: Optima®
• Series: 186 Smooth
