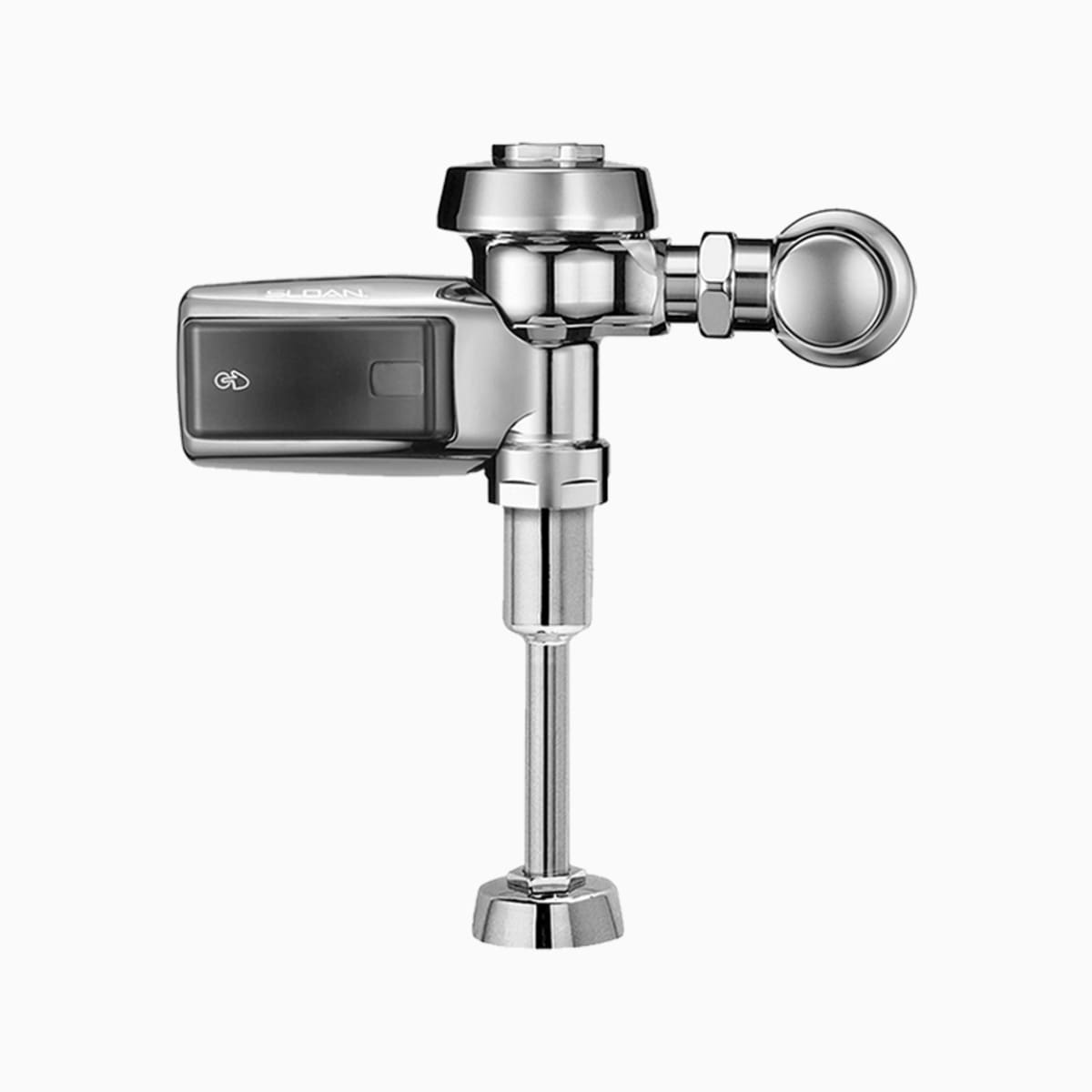

Sloan 3912670 Royal 186-1 Smooth Flush Valve

Product Description

The Sloan Royal 186-1 Smooth Flush Valve, model 3912670, is a sensor-operated flushometer designed for urinal fixtures. This model is powered by a battery and features a 1 gallon per flush rate for efficient water usage. The valve includes a top spud connection and is built with a diaphragm valve design.

• Includes the required wall plate and a purple wall flange to indicate reclaimed water usage.
• Constructed with semi-red brass and features a polished chrome finish.
• Compliant with ADA standards and has a limited warranty of three years.

Product Highlights

This flush valve is ideal for commercial use, providing reliability and efficiency for urinal installations. It meets all necessary standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Model Number: 3912670

Technical Specifications

• Flush Rate: 1 gpf
• Power Source: Battery
• Inlet Size: 3/4 in IPS
• Pressure Rating: 25 to 80 psi
• Material: Semi-Red Brass
• Sensor Range: 26 to 32 in
• Rough-In Size: 11-1/2 in
• Fixture Type: Urinal
• Series: 186 Smooth
