Sloan 3910176 Royal 111 SMO M Flushometer

Product Description

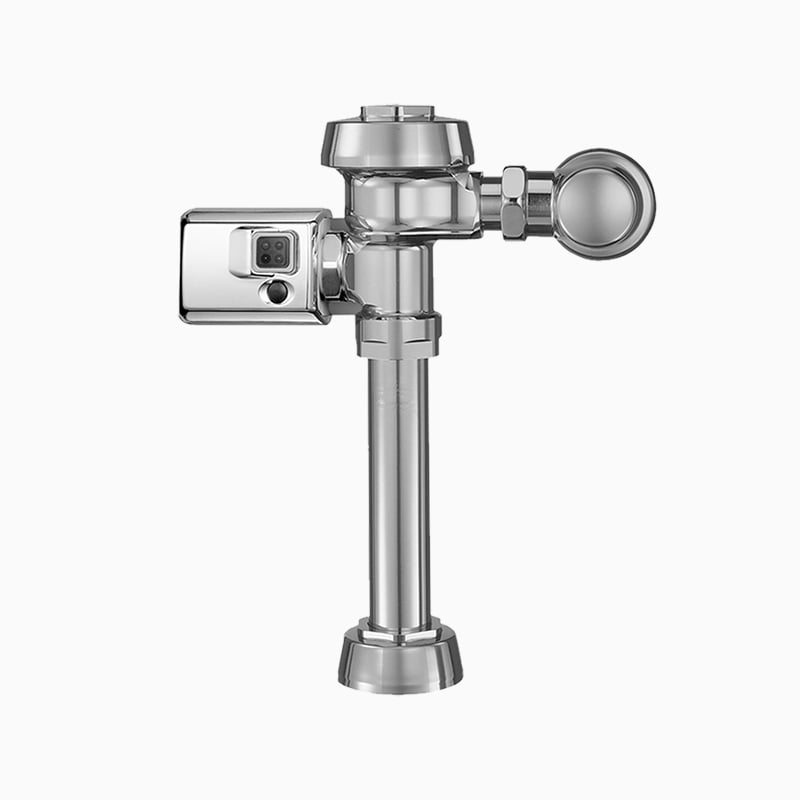

The Sloan 3910176 Royal 111 SMO M flushometer is designed for exposed water closet fixtures. It uses a battery power source to provide reliable performance at a flush rate of 1.6 gallons per flush (gpf). This flushometer features a diaphragm valve design and is made with semi-red brass and polished chrome for durability and ease of maintenance.

• Battery powered for consistent operation
• Includes wall plate and purple wall flange
• Sensor range from 8 to 54 inches

Product Highlights

This Sloan flushometer is ideal for commercial bathrooms and public facilities. It complies with ASSE standards and ADA requirements, ensuring accessibility and efficiency in water usage.

Product Information

Standard Information

• Brand: Sloan Valve Co
• Manufacturer Part Number: 3910176

Technical Specifications

• Flush Rate: 1.6 gpf
• Inlet Size: 1 inch IPS
• Spud Coupling: 1-1/2 inches
• Connection Location: Top Spud
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 inches
• Sensor Range: 8 to 54 inches
• Diaphragm Valve Design: Yes
