Sloan 3789601 SLOAN BPW 1150-1.6

Product Description

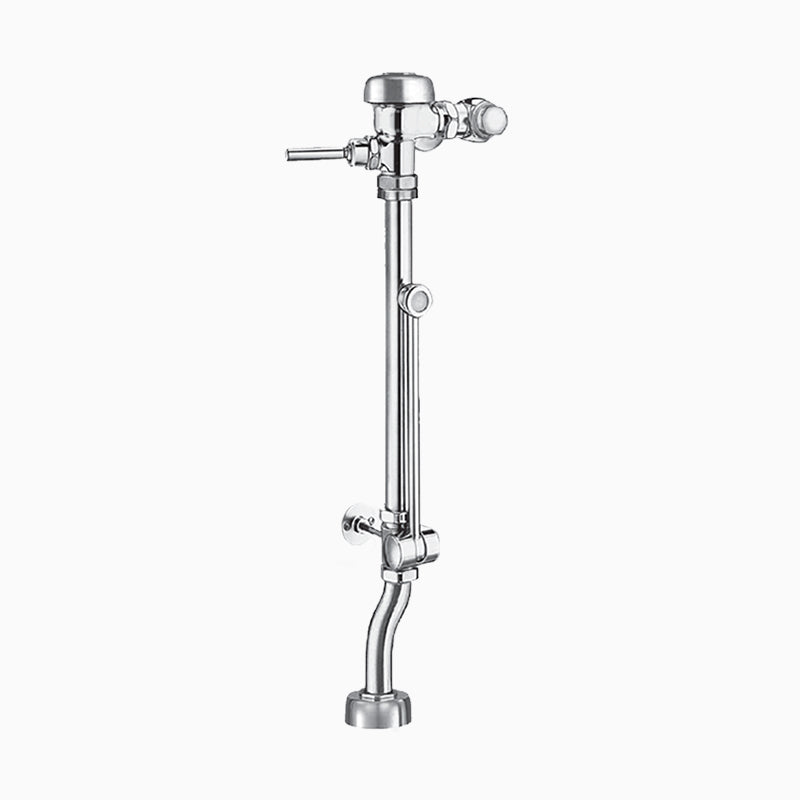

The Sloan BPW 1150-1.6 is a manual exposed flushometer made by Sloan Valve Co. It features a single-flush operation with a flush rate of one point six gallons per flush. The connection is at the top spud with a one inch IPS inlet and requires a rough-in of twenty-six and a half inches. This model is designed for water closet fixtures and operates efficiently within a pressure range of fifteen to eighty psi.

• ADA compliant ergonomic height
• Self-adaptive infrared sensor operation
• Constructed with durable semi-red brass and polished chrome finish

Product Highlights

This flushometer is suitable for both floor-mounted and wall-hung top spud bowls. The design minimizes bacteria accumulation and eliminates unsanitary hose sprays, making it ideal for public restrooms.

Product Information

Standard Information

• Brand: Sloan Valve Co
• MPN: 3789601

Technical Specifications

• Flush Rate: 1.6 gpf
• Fixture Type: Water Closet
• Inlet Size: 1 in IPS
• Connection Location: Top Spud
• Spud Coupling: 1-1/2 in
• Rough-In Size: 26-1/2 in
• Material: Semi-Red Brass
• Pressure Rating: 15 to 80 psi
• Valve Design: Diaphragm
