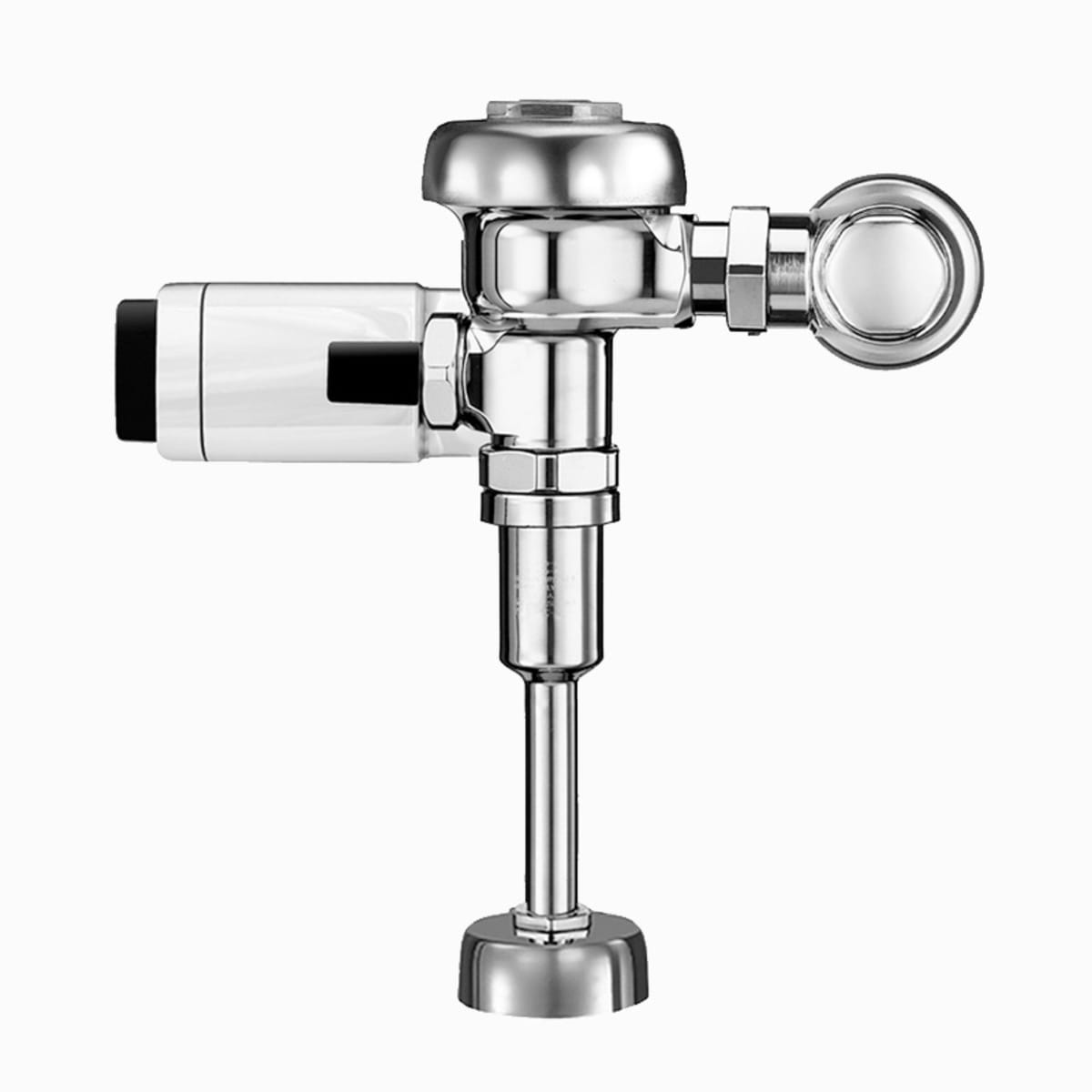

Sloan 3782688 SLOAN 186-0.125 SFSM Flushometer

Product Description

The Sloan 186-0.125 SFSM is an exposed sensor flushometer designed for urinals. Manufactured by Sloan Valve Co, this product operates on a battery power source and features a flush rate of 0.125 gallons per flush. The connection is a three-fourths inch IPS inlet with a three-fourths inch spud coupling. It has a rough-in size of eleven-and-a-half inches.

• Effective water conservation with a non-hold-open handle.
• Durable construction with high copper, low zinc brass castings.
• Adjustable tailpiece for multiple installation heights.

Product Highlights

This flushometer provides reliable performance and meets compliance standards for effective water use.

Product Information

Standard Information

• Brand: Sloan Valve Co
• Type: Sensor Operated

Technical Specifications

• Flush Rate: 0.125 gpf
• Inlet Size: 3/4 in IPS
• Material: Semi-Red Brass
• Power Source: Battery
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Sensor Range: 22 to 42 in
• Valve Design: Diaphragm
• Finish: Polished Chrome
