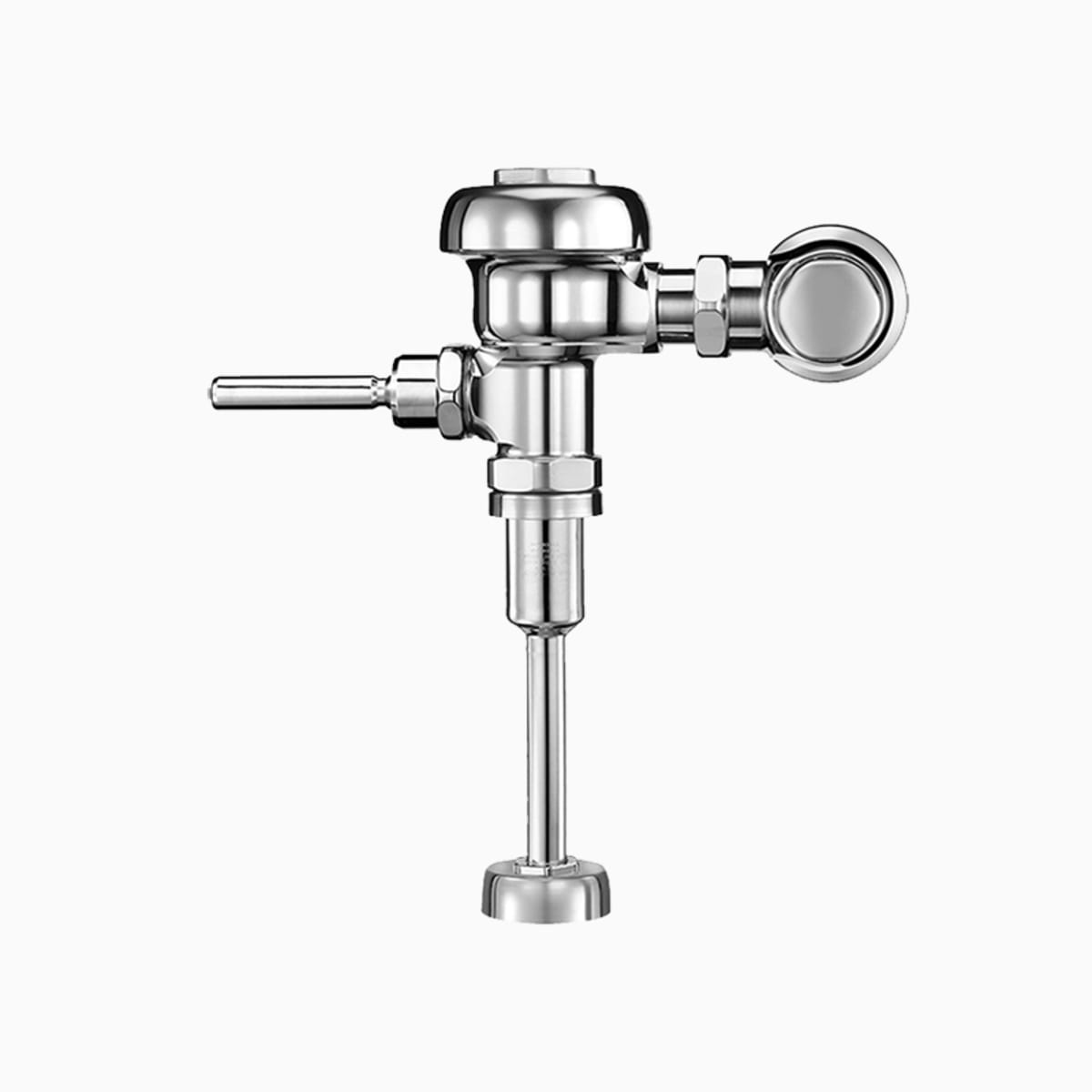

Sloan 3782643 Manual Flushometer (SLOAN 186-0.125 DBP) Flush Valves

Product Description

Sloan, MPN 3782643, is a manual exposed flushometer designed for urinal applications. This flushometer features a single-flush mechanism with a flush rate of zero point one two five gallons per flush. The standard inlet size is three-fourths inch IPS, fitted with a diaphragm valve design. It accommodates a rough-in size of eleven and one-half inches and operates under a pressure rating of fifteen to eighty psi.

• Dual filtration system enhances water efficiency.
• Constructed from semi-red brass with a polished chrome finish.
• ADA compliant with a non-hold open oscillating handle.

Product Highlights

This Sloan flushometer is ideal for both residential and commercial urinal settings. It aids in water conservation while providing accurate flush control.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Type: Manual Flush

Technical Specifications

• Flush Rate: 0.125 gpf
• Inlet Size: 3/4 in IPS
• Connection Location: Top Spud
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Handle Type: Non-Hold Open Oscillating
• Fixture Type: Urinal
• Material: Semi-Red Brass
