Sloan 3780038 Sloan 111-1.28 SFSM

Product Description

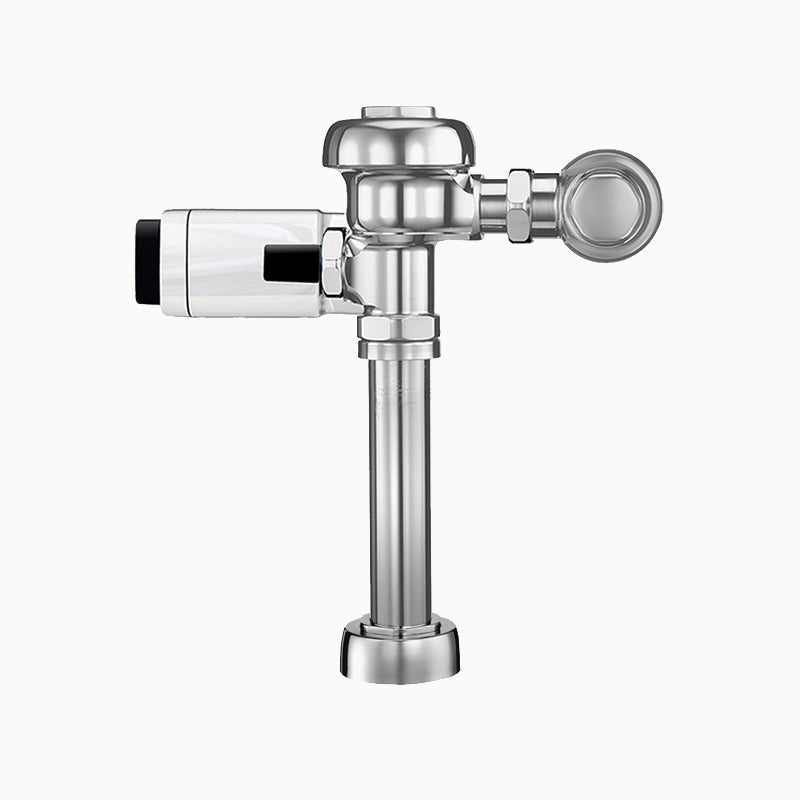

The Sloan 3780038 is a sensor exposed flushometer designed for water closet fixtures. It operates on battery power and features a flush rate of 1.28 gallons per flush. The unit includes a one-inch IPS inlet and a one-and-a-half-inch spud coupling. The rough-in size is eleven and a half inches and is made from semi-red brass with a polished chrome finish.

• Single-flush design for efficiency
• Adjustable sensor range from 22 to 42 inches
• ADA compliant handle to assist in water conservation

Product Highlights

This flushometer includes advanced CID technology for accurate flush control and durability with high copper, low zinc brass castings. It also offers resistance to dezincification.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Power Source: Battery

Technical Specifications

• Flush Rate: 1.28 gpf
• Inlet Size: 1 inch IPS
• Material: Semi-red brass
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 inches
• Connection Location: Top spud
• Spud Coupling: 1-1/2 inches
• Fixture Type: Water closet
