Product Description

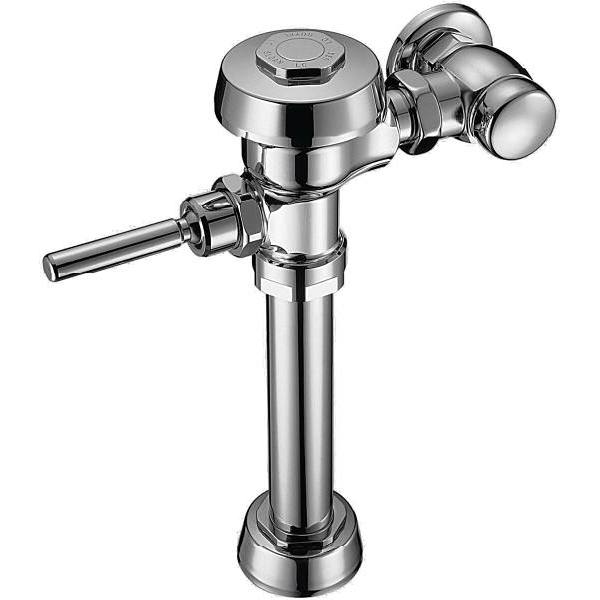

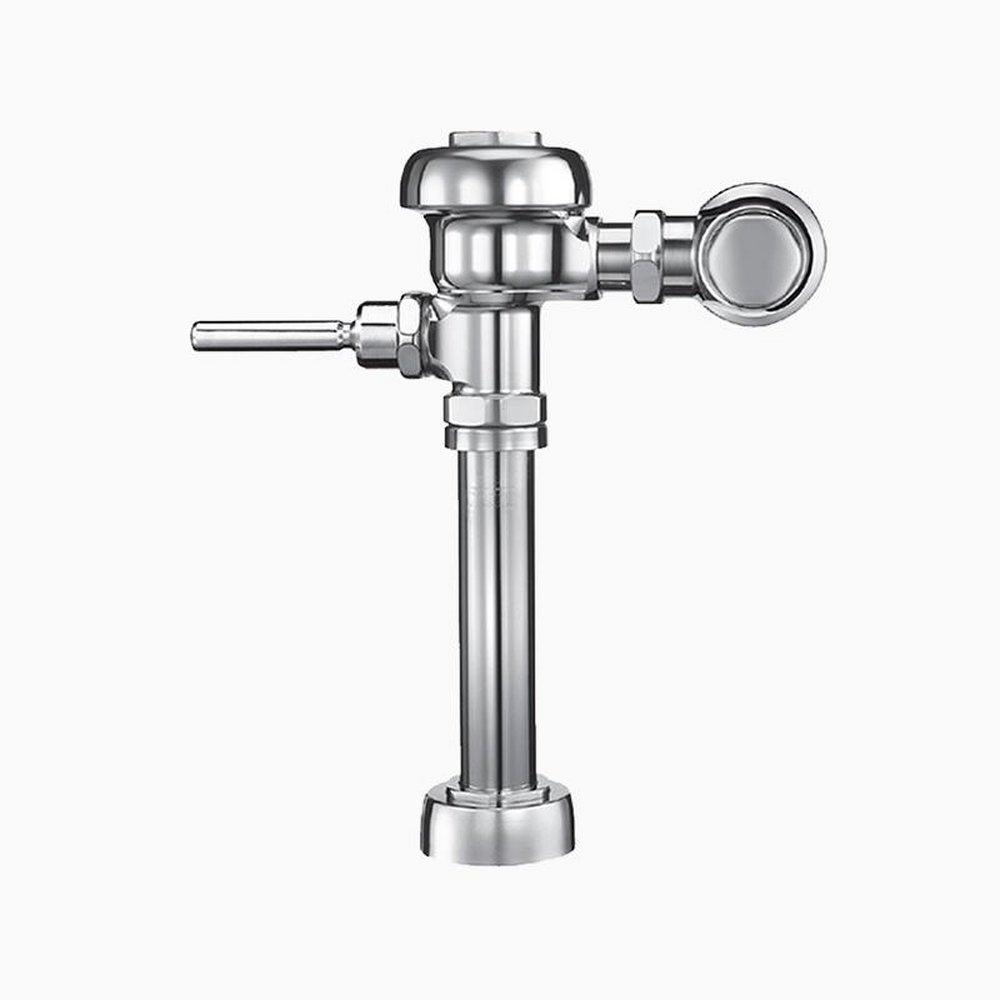

The Sloan LED 3780018 111-1.28 DFB is a 1.28 GPF top spud single flush exposed manual water closet flushometer with a dual-filtered fixed bypass diaphragm. Designed for commercial applications, it is ideal for high-traffic areas. Durability is facilitated with high copper, low zinc brass castings for dezincification resistance.
- Flush volumes start as low as 1.6 GPF/6.0 LPF
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended Flush volume
- Flush accuracy is controlled by CID technology, also enhancing water efficiency
Product Highlights
This Sloan flushometer features a non-hold-open handle, promoting water conservation. It includes a sweat solder adapter for a secure connection and is ADA compliant.
Product Information
Standard Information
-
Brand: SLOAN LED
-
Manufacturer Part Number: 3780018
-
Country of Origin: USA
Technical Specifications
-
Flush Type: Manual
-
Fixture Connection: Wall
-
Flush Mechanism: Single
-
Flush Volume: 1.28 GPF
-
Valve: Diaphragm
-
Valve Body Material: Semi-red Brass
-
Water Efficiency: High Efficiency
-
ADA Compliant: Yes
-
ANSI: ANSI A112.19.2
-
ASME: ASME A112.19.2
-
Fitting Size 1: 1 in
-
Fitting Sizes: 1 in
-
Flow Rate: 1.28 gpf
-
Flow Rate Range: 1.0 gpf - 1.5 gpf
-
Flush Valve Application: Water Closet
-
Handle Type: Lever
-
Height: 11-1/2 in
-
Material: Brass
-
Proposition 65: WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
-
Spud Location: Top
-
Spud Size: 1-1/2 in
-
UPC: 671254356580
-
WaterSense Labeled: Yes
-
Exterior Finish: Polished Chrome
-
Inlet Connection Size: 1 Inches
-
Inlet Connection Type: Sweat
-
Outlet Connection Type: Fixture Top Spud
-
Maximum Operating Pressure: 80 Pound per Square Inch
-
Outlet Connection Size: 1.5 Inches
-
Specification Met: ADA
-
Manufacturer: Sloan Valve Co.
-
Part Number: 3780018
-
Item model number: 3780018
-
Size: 1.28 GPF
-
Style: Dual-Filtered Bypass
-
Finish: Chrome
-
Installation Method: Toilet
-
Item Package Quantity: 1
-
Water Consumption: 1.28 Gallons
-
Brand Compatibility: Sloan
-
Commercial/Residential: Commercial
-
For Use With: Floor Mounted & Wall Hung Top Spud Bowls
-
Ligature Resistant: No
-
Mounting Style: Top
-
Package Quantity: 1
-
Toilet and Urinal Part Type: Flushometer
-
Product Depth: 4.6 in.
-
Product Height: 10.6 in.
-
Product Width: 9.1 in.
-
Certifications & Standards: ADA Compliant, ANSI Certified, ASME Certified, ASSE Listed
