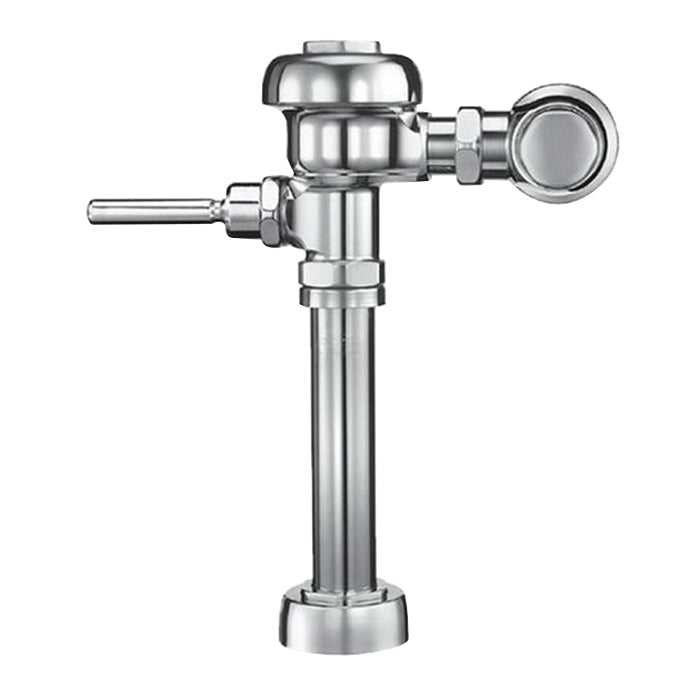

Sloan 3780000 flushometer 1.6 gpf Manual Flush Valve

Product Description

The Sloan 3780000 is a manual flushometer featuring an efficient flush rate of 1.6 gallons per flush. This model is designed for water closet applications with a one-inch IPS inlet and a 1.5-inch spud coupling. The flushometer is provided with a vandal-resistant stop cap for enhanced durability.

• Flush volumes start at 1.6 gallons per flush.
• Water-saving design with a non-hold-open oscillating handle.
• Built with high copper, low zinc brass for dezincification resistance.

Product Highlights

This flushometer features a diaphragm valve design, making it suitable for floor-mounted or wall-hung toilets. It operates effectively with a pressure range between 15 to 80 psi, ensuring consistent performance in various plumbing conditions.

Product Information

Standard Information

• Brand: Sloan
• MPN: 3780000

Technical Specifications

• Flush Rate: 1.6 gpf
• Inlet Size: 1 in IPS
• Spud Coupling: 1-1/2 in
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Material: Semi-Red Brass
• Handle Type: Non-Hold Open Oscillating
• Valve Design: Diaphragm
• Connection Location: Top Spud
