Sloan 3453214 Royal 195-1.5-WB ES-S Urinal Flushometer

Product Description

The Sloan 3453214 Royal 195-1.5-WB ES-S is a diaphragm-type flushometer designed for urinals. It operates quietly and is concealed for aesthetic installations. This flushometer includes a PERMEX synthetic rubber diaphragm and a dual-filtered fixed bypass. The OPTIMA EL-1500-L sensor adapts automatically and includes an indicator light to signal operation.

• Equipped with PERMEX synthetic rubber diaphragm with dual filtered fixed bypass
• Features OPTIMA EL-1500-L self-adaptive infrared sensor with indicator light

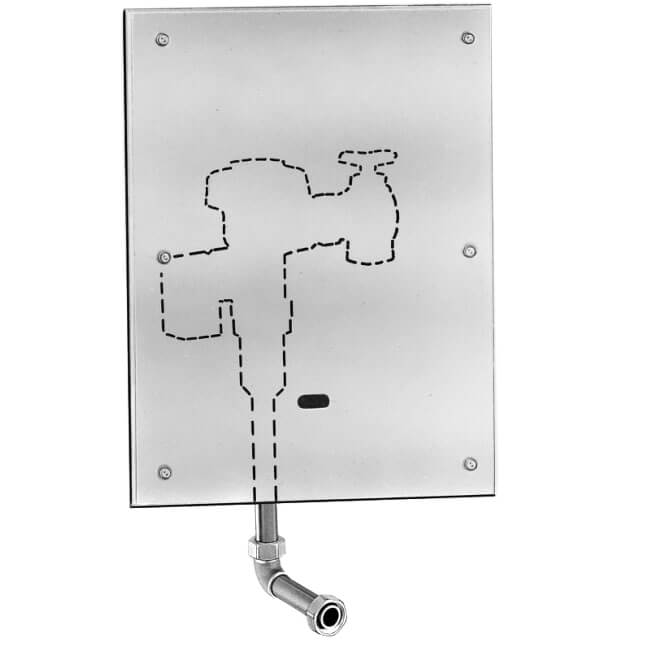

• Includes 13 inches x 17 inches EASY ACCESS wall box with stainless steel access panel

Product Highlights

This unit is ideal for commercial settings where water conservation is needed. It allows for one gallon per flush while maintaining efficiency.

Product Information

Standard Information

• Application: Plumbing
• Category: Flushometer

Technical Specifications

• Spud Size: 3/4 inches
• Spud Placement: Back
• Gallons Per Flush: 1
• Installation Type: Urinal
• L Dimension: 11-3/4 inches - 12-3/4 inches
• Fixture Mount: Wall
• Sensor Type: Sensor-Operated
• Fixture Type: Urinal
• Installation Place: Concealed
• Overall Dimensions (L x W x H): 12 x 11.375 x 4.75 inches
• Finish: Rough Brass
• Brand: Sloan
