Sloan 3452674 Royal 186-0.5 ESS Hardwired Flushometer

Product Description

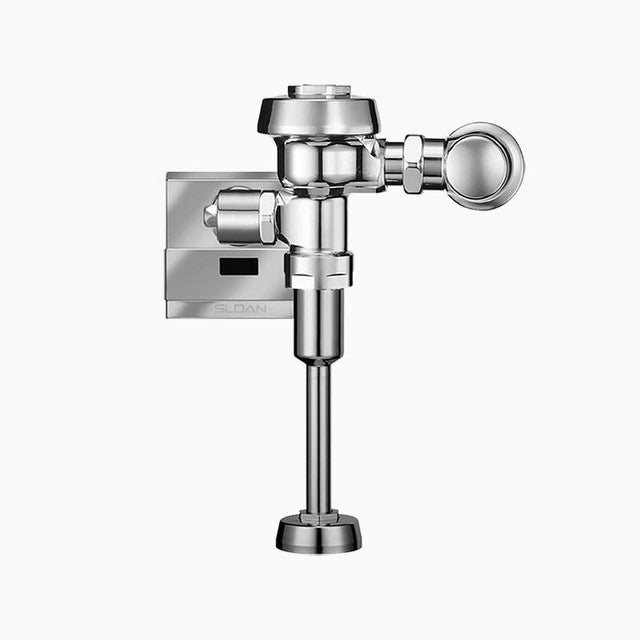

The Sloan Royal 186-0.5 ESS is a sensor-activated flushometer designed for urinal fixtures. This model features a 0.5 gallons per flush rate and comes equipped with a diaphragm valve design. The unit has a three-quarter inch IPS inlet and a three-quarter inch spud coupling, suitable for rough-in installations up to eleven and one-half inches.

• Sensor range of 15 to 30 inches
• Pressure rating between 15 to 80 psi
• Constructed from semi-red brass with a polished chrome finish

Product Highlights

This flushometer incorporates advanced technology for efficient water usage and features an OPTIMA EL-1500 sensor for smooth operation.

Product Information

Standard Information

• Brand: Sloan Valve Co
• MPN: 3452674

Technical Specifications

• Connection Location: Top
• Fixture Type: Urinal
• Valve Design: Diaphragm
• Material: Semi-Red Brass
• Finish/Color: Polished Chrome
• Flush Rate: 0.5 gpf
• Inlet Size: 3/4 inches IPS
• Rough-In Size: 11-1/2 inches
• Sensor Range: 15 to 30 inches
• Series: 186 ESS
• Spud Coupling: 3/4 inches
• Operating Mechanism: Single-Flush
