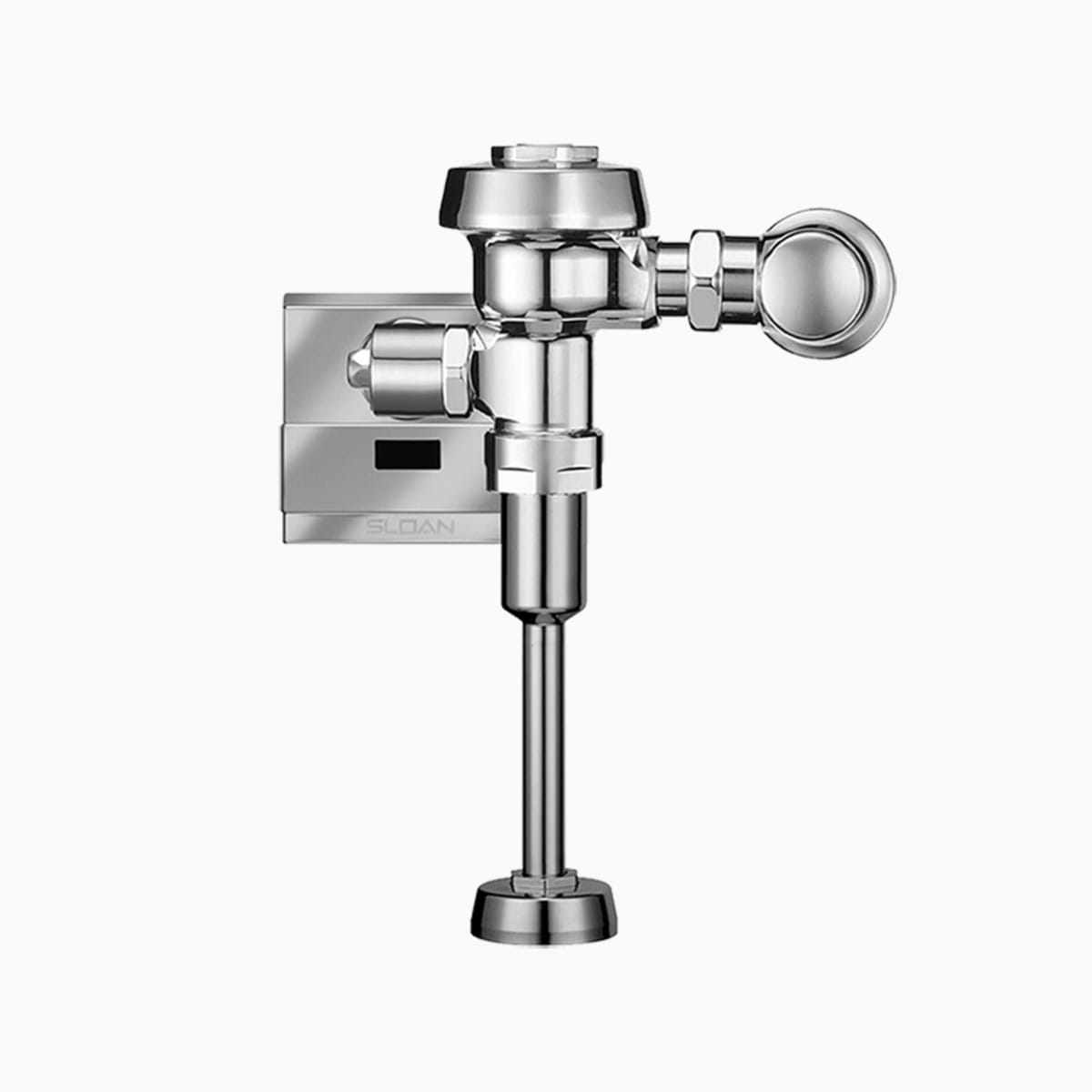

Sloan 3452630 Royal 186-0.125 DBP ESS Sensor Flushometer

Product Description

The Sloan 3452630 is a sensor-activated flushometer designed for urinal fixtures. This model features a single-flush operation, allowing a flush rate of 0.125 gallons per flush. It is built with a diaphragm valve design and connects via a three-quarter inch IPS inlet. This product is made with semi-red brass and finished in polished chrome, ensuring durability and resistance to corrosion.

• Sensor-activated and hardwired for efficient operation.
• Self-adaptive infrared sensor with indicator light.
• Includes a high back pressure vacuum breaker connection.

Product Highlights

The Sloan 3452630 is ideal for commercial environments where water conservation is a priority. It meets ADA guidelines and is WaterSense listed, qualifying for many rebate programs.

Product Information

Standard Information

• Brand: Sloan Valve Co
• MPN: 3452630

Technical Specifications

• Flush Rate: 0.125 gpf
• Inlet Size: 3/4 in IPS
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Sensor Range: 15 to 30 in
• Valve Design: Diaphragm
• Finish: Polished Chrome
• Domestic/Import: Domestic
