Sloan 3396077 VBF72A1 Vacuum Breaker 1/2 In

Product Description

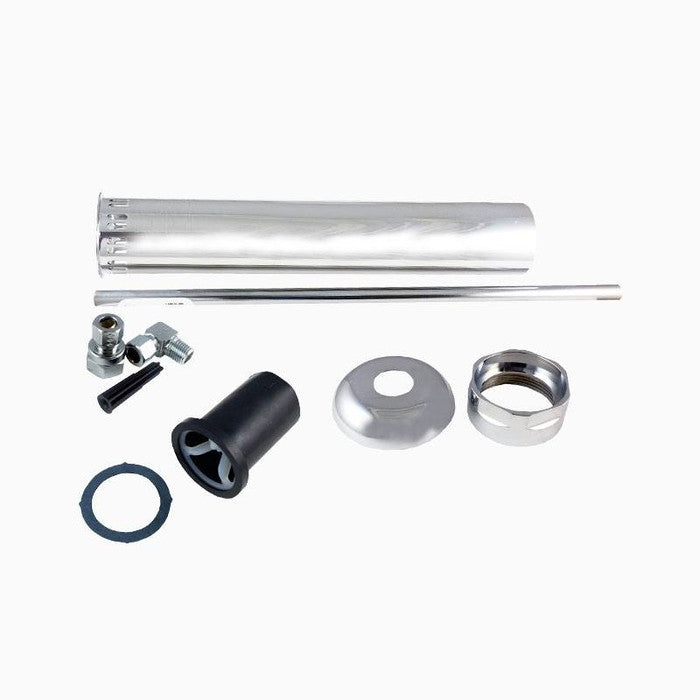

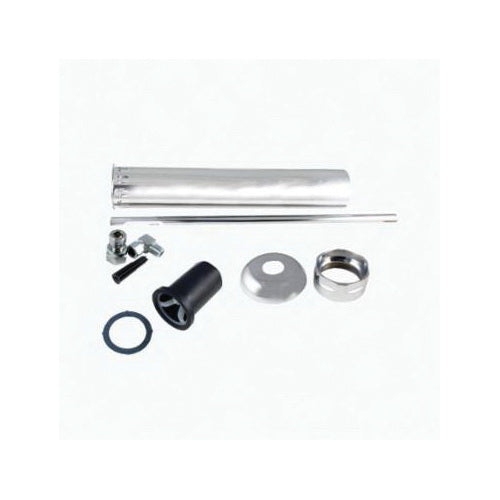

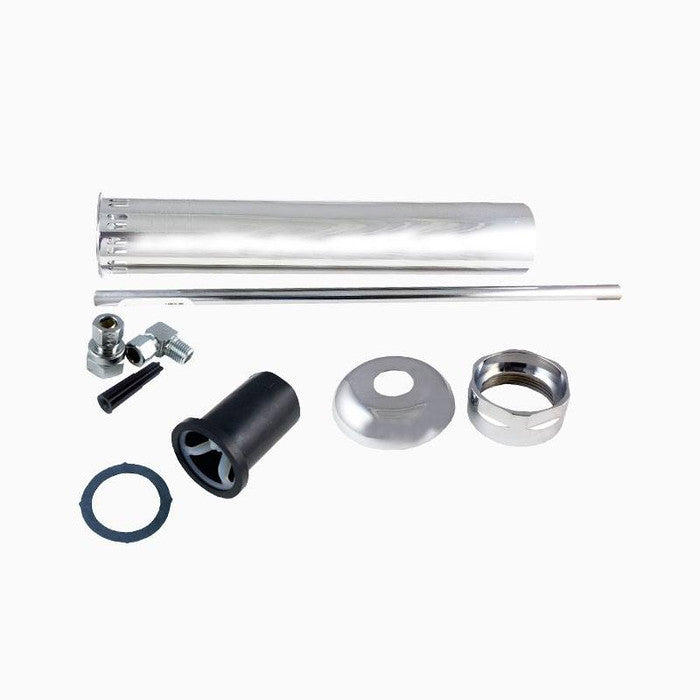

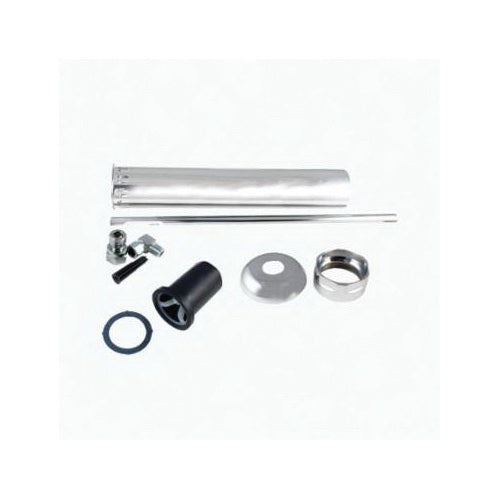

The Sloan 3396077 is a VBF72A1 vacuum breaker and trap primer assembly used in flushometer plumbing installations to prevent back-siphonage and maintain floor-trap seals. It features a chrome-plated one-piece flush connection and a 1/2 in inlet for exposed flushometer connection, with a nominal 1-1/2 in diameter and a primer range of 1-1/2 in to 21-1/2 in. Weight: 1.802 lbs. Compatible with Royal Regal 115/115-1.6 and with 1.6 and 3.5 gpf flushometers.

• Vacuum breaker and trap primer assembly, model VBF72A1 (MPN 3396077)
• Chrome-plated one-piece flush connection with 1/2 in connection size
• Includes diverter wall flange and fittings; nominal diameter 1-1/2 in

Product Highlights

Vacuum breaker trap primer for flushometer installations; chrome-plated; compatible with 1.6 and 3.5 gpf flushometers

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3396077
• Country of Origin: United States

Technical Specifications

• Brand: Sloan
• MPN: 3396077
• Model: VBF72A1
• Series: VBF-72-A1
• Product Type: Vacuum breaker trap primer assembly
• Category: Vacuum Breaker
• Connection Size: 1/2 in
• Finish: Chrome plated (CP)
• Weight: 1.802 lbs
• Nominal Diameter: 1-1/2 in
• Primer Range (Nominal Length): 1-1/2 in to 21-1/2 in
• Includes: One-piece chrome-plated flush connection; diverter wall flange and fittings
• Compatibility: Compatible with Royal Regal 115/115-1.6 flushometer; compatible with 1.6 gpf and 3.5 gpf flushometers
• Country of Origin: United States
