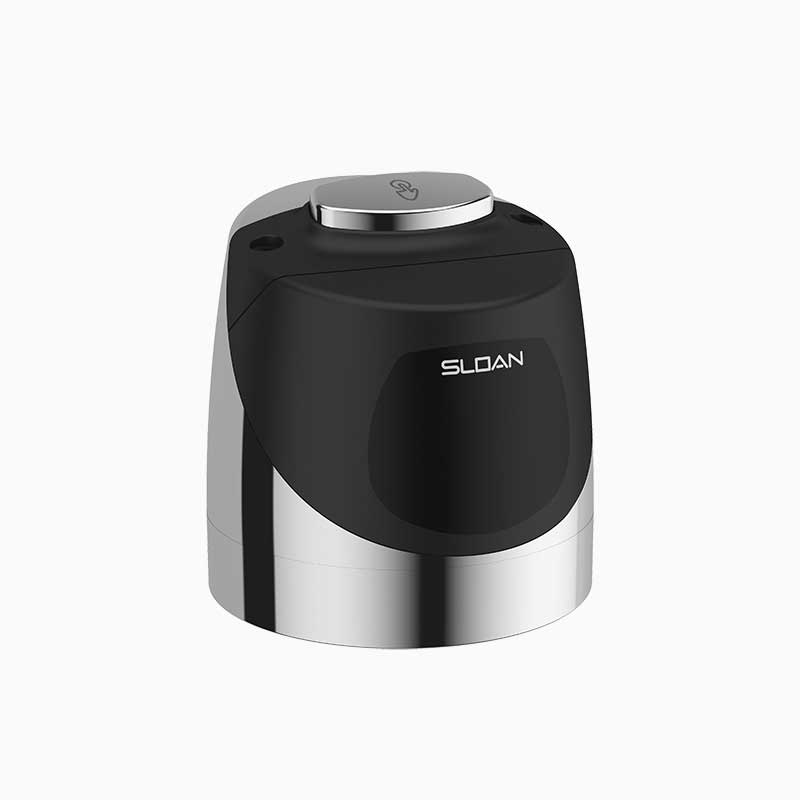

Sloan 3375424 Sensor Flushometer Retrofit 0.5 Gpf Chrome

Product Description

The SLOAN 3375424 is a single-flush, sensor-activated flushometer retrofit unit designed to upgrade existing manual flushometers to hands-free, electronic operation. Built from semi-red brass with a polished chrome finish, this unit delivers a 0.5 gallon-per-flush (GPF) flow rate, making it well-suited for water conservation applications. It mounts via a top-mount configuration and is manufactured domestically. Licensed plumbers and commercial facility technicians install this type of retrofit in restroom facilities where reducing water consumption and improving sanitation through touchless flushing are priorities.

This retrofit is intended for commercial and institutional restroom applications where existing flushometer bodies are already in place. The sensor-activated design eliminates the need for manual handles, reducing contact points in high-traffic facilities such as offices, schools, hospitals, and public restrooms. The 0.5 GPF rating targets urinal applications where low-consumption flushing meets code requirements for water efficiency and conservation standards.

Key Features

• Single-flush sensor activation for hands-free, touchless operation
• 0.5 GPF flow rate supports water conservation and low-consumption compliance
• Semi-red brass construction for durability in commercial plumbing environments
• Polished chrome finish for a clean, professional appearance
• Top-mount installation design for straightforward retrofit integration
• ADA Compliant and meets ASSE 1037, cUPC, and cUPC Green Listed standards
• Domestically manufactured in the United States

Compatibility

Part of the SLOAN ECOS RESS-U series, this retrofit is designed for use with compatible existing flushometer bodies in commercial restroom installations. Refer to SLOAN RESS and RESS-U series documentation to confirm fitment with the installed valve body before ordering.

Installation Notes

Installation should be performed by a licensed plumber familiar with commercial flushometer systems. Shut off the water supply and relieve line pressure before removing any existing components. Follow all applicable local plumbing codes and ASSE 1037 requirements during installation. Do not overtighten fittings on the brass body, and verify sensor function and flush volume after installation is complete.

Technical Specifications

• Flow Rate: 0.5 GPF
• Flush Type: Single-Flush
• Activation: Sensor Activated
• Mount Type: Top Mount
• Material: Semi-Red Brass
• Finish: Polished Chrome
• Weight: 3.573 pounds
• Country of Origin: United States
• Standards and Approvals: ADA Compliant, ASSE 1037, cUPC Listed, cUPC Green Listed, Satisfies LEED Credits

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3375424
