Sloan 3370450 ECOS 8186-0.125 OR LL

Product Description

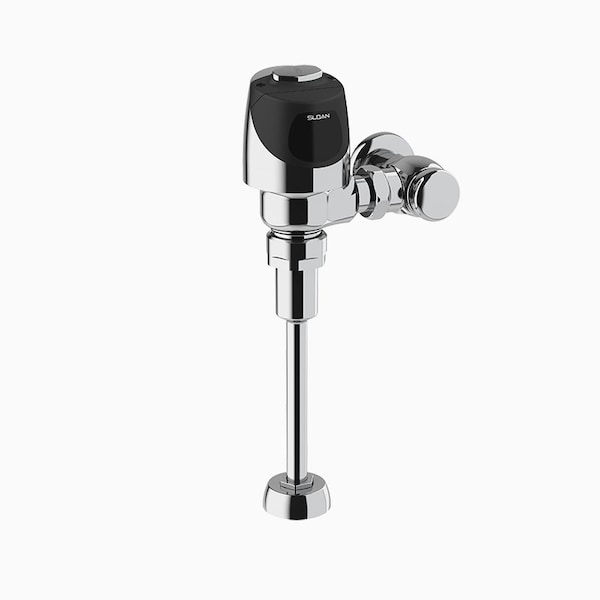

The Sloan ECOS 8186-0.125 OR LL is a sensor-exposed flushometer designed for urinals. This model features a battery power source and is engineered for efficient flushing at a rate of 0.125 gallons per flush. It measures three-quarters of an inch for the inlet, and its diaphragm valve design enhances reliability. The setup includes a rough-in size of eleven and a half inches, making it suitable for various installation requirements.

• Efficient flush volume options of 0.125 gpf or 0.25 gpf.
• Infrared sensor operation with multiple detection fields.
• User-friendly design with a three-second flush delay.

Product Highlights

This sensor flushometer allows for water conservation while maintaining performance standards.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Category: Plumbing > Toilets and Urinals

Technical Specifications

• Flush Rate: 0.125 gpf
• Inlet Size: 3/4 in IPS
• Material: Semi-Red Brass
• Power Source: Battery
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Sensor Range: 15 to 30 in
• Finish: Polished Chrome
• Connection Location: Top Spud
• Fixture Type: Urinal
• Valve Design: Diaphragm
