Sloan 3370441 ECOS 186-0.5 HW OR

Product Description

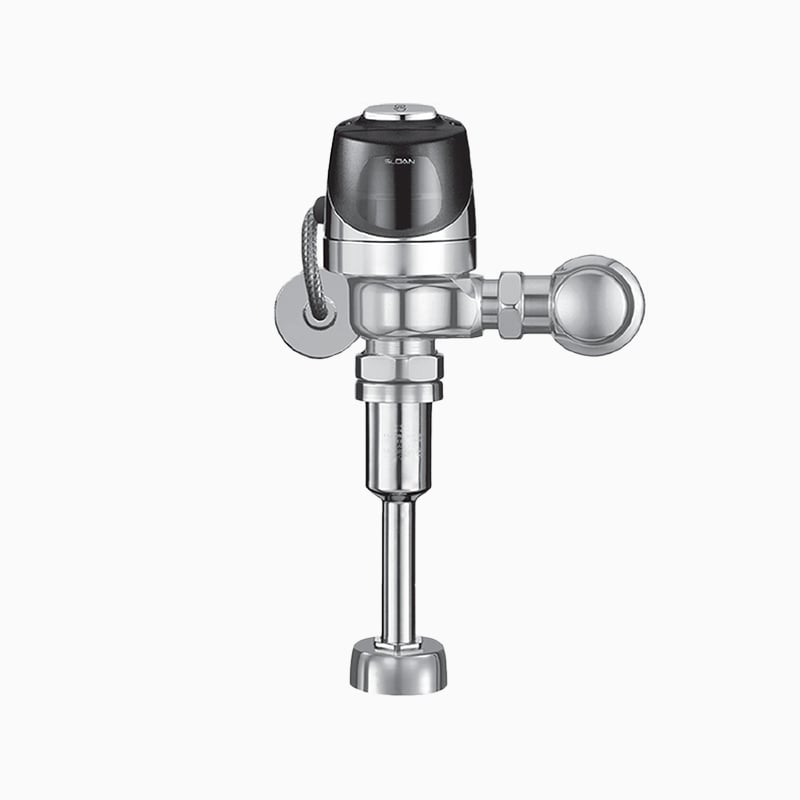

The Sloan ECOS 186-0.5 HW OR is a sensor operated flushometer designed for urinal fixtures. This product features a hardwired power source and utilizes a flush rate of 0.5 gallons per flush. The installation requires a three-quarter inch IPS inlet and a three-quarter inch spud coupling.

• Automatically adjusts flush based on user proximity and duration
• Constructed with high copper, low zinc brass for durability
• Meets various compliance standards including WaterSense

Product Highlights

The Sloan ECOS series combines advanced features for effective water conservation and user convenience, making it suitable for public restrooms.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Type: Single-Flush

Technical Specifications

• Connection Location: Top Spud
• Flush Rate: 0.5 gpf
• Inlet Size: 3/4 in IPS
• Material: Semi-Red Brass
• Pressure Rating: 15 to 80 psi
• Rough-In Size: 11-1/2 in
• Sensor Range: 22 to 42 in
• Series: 186
