Product Description

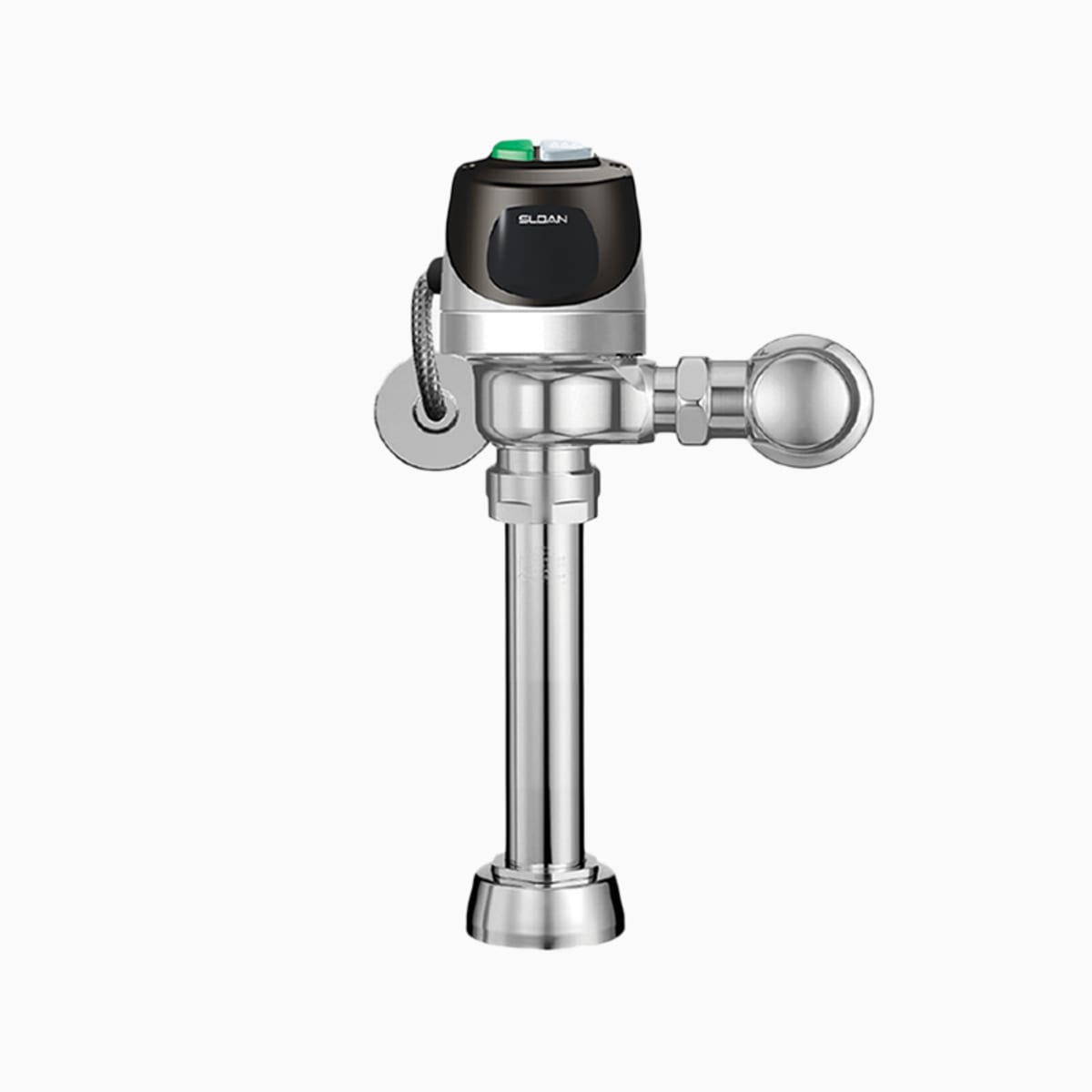

The Sloan ECOS 111 1.6/1.1 HW is a sensor-operated flushometer, designed for water closet fixtures. The MPN is 3370420. This model features dual-flush options, providing a choice between 1.1 gallons per flush or 1.6 gallons per flush.
- Hardwired power source
- Constructed from semi-red brass with a polished chrome finish
- Automatic operation triggered by an infrared sensor
Product Highlights
The Sloan ECOS series provides reliable performance and water conservation in commercial toilet applications. The flushometer is designed to ensure efficient flushing while maintaining ADA compliance.
Product Information
Standard Information
-
Manufacturer: Sloan Valve Company
-
Type: Sensor Operated
Technical Specifications
-
Flush Volume: 1.1/1.6 gpf
-
Power Source: Hardwired
-
Material: Semi-Red Brass
-
Finish: Polished Chrome
-
Connection Location: Top Spud
-
Inlet Size: 1 inch IPS
-
Pressure Rating: 15 to 80 psi
-
Rough-In Size: 11-1/2 inches
-
Sensor Range: 22 to 42 inches
-
Spud Coupling: 1-1/2 inches
-
Valve Design: Diaphragm
-
Series: 111
