Product Description

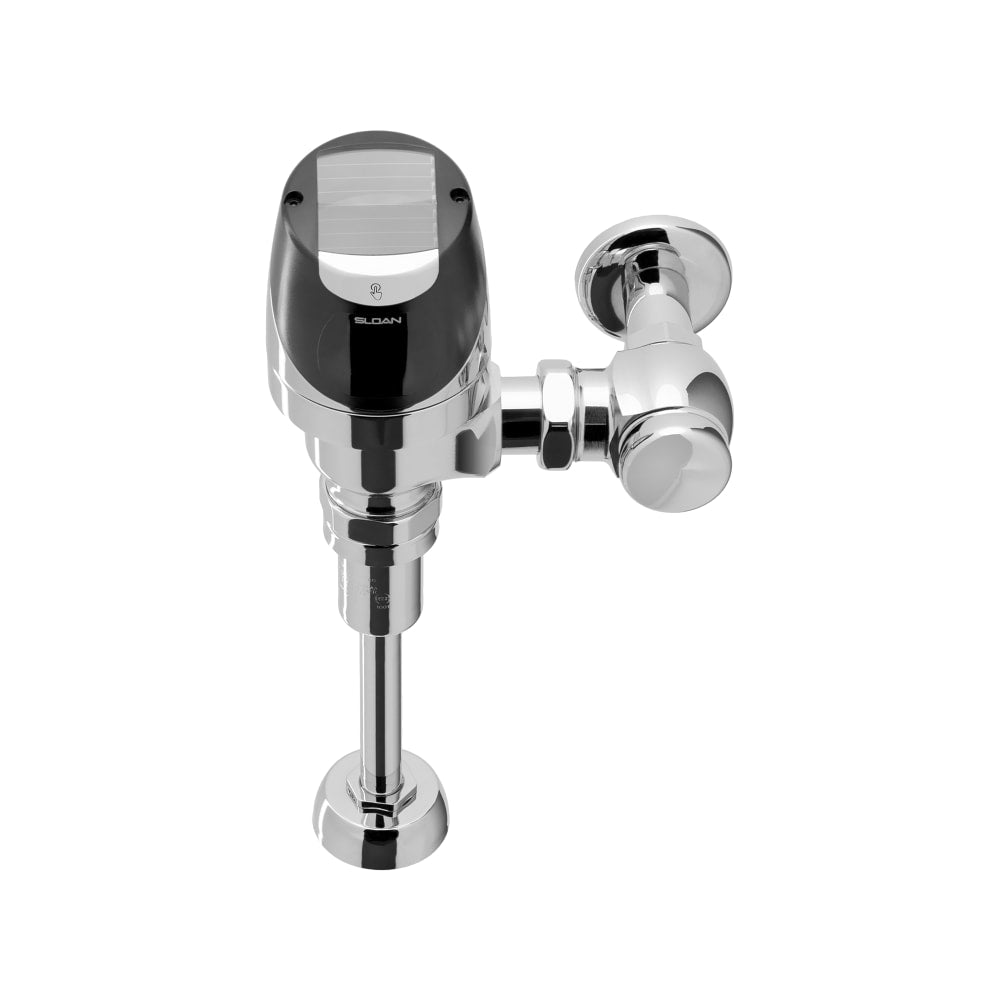

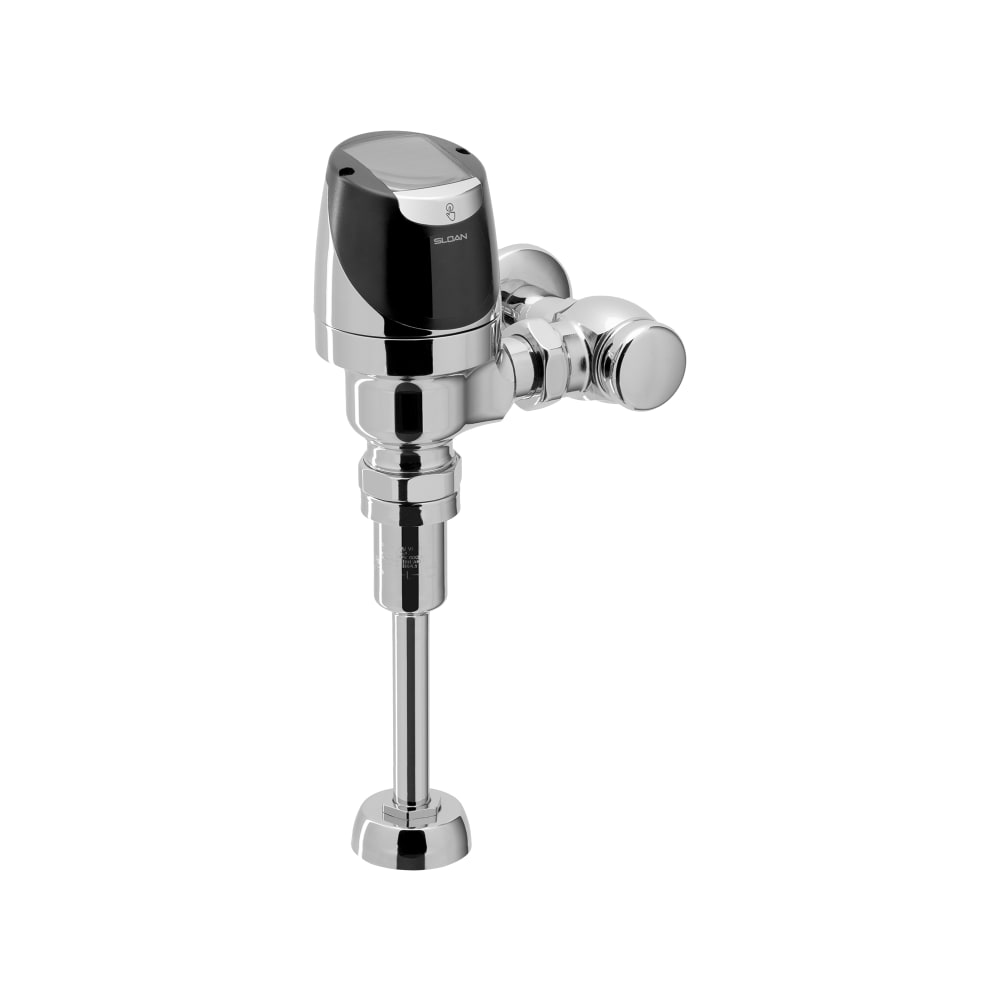

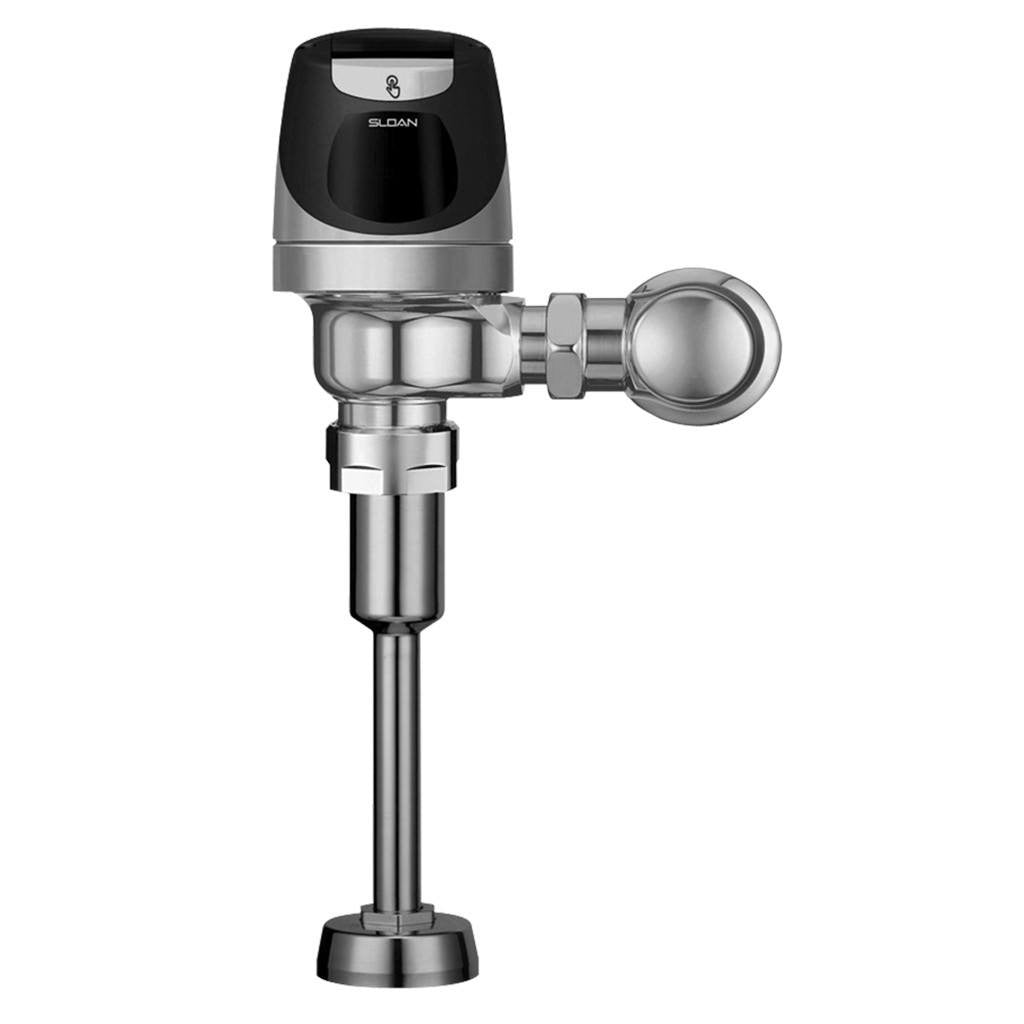

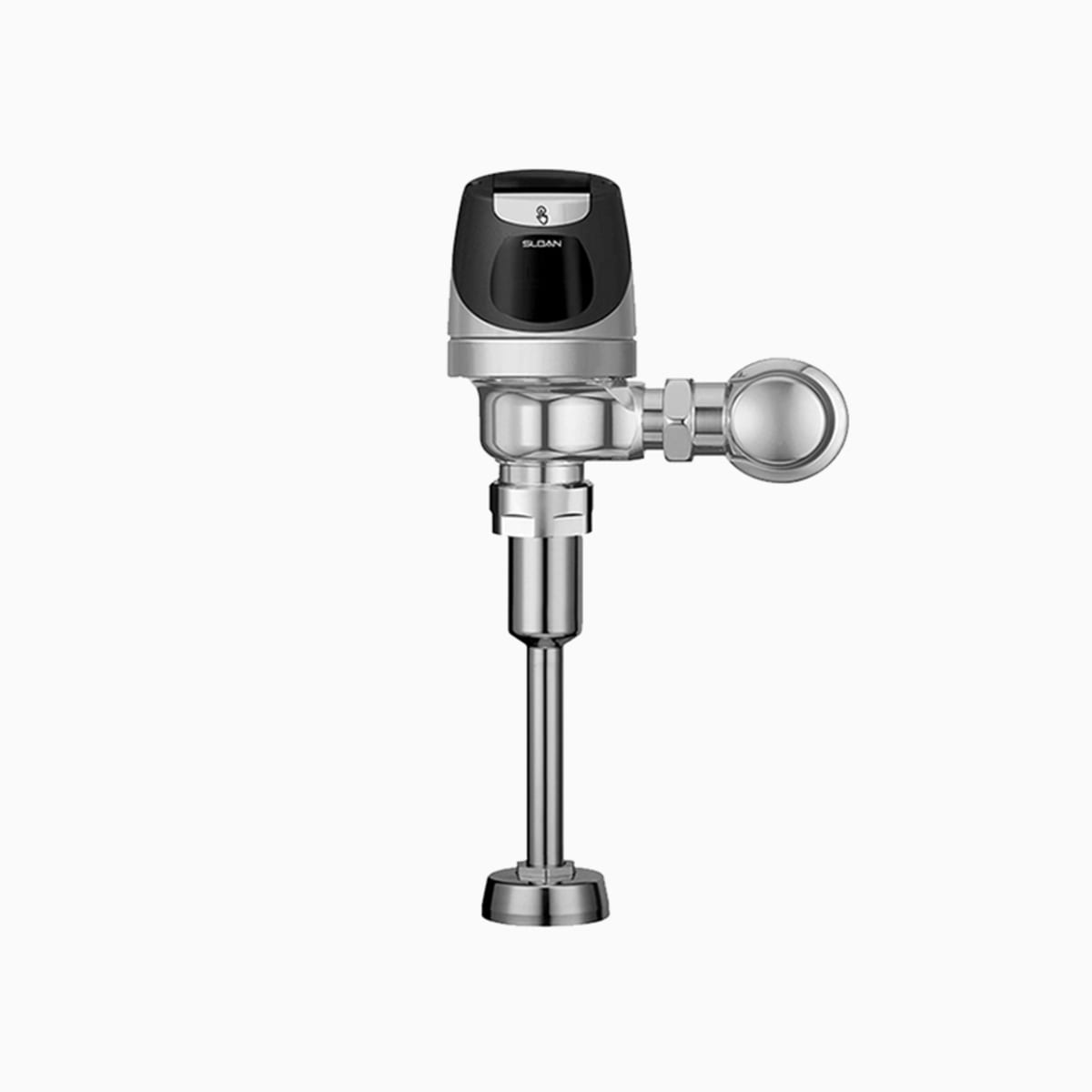

The SLOAN 3370010 Solis® Sensor Flushometer is an ADA-compliant, exposed, solar-powered, sensor-operated single-flush urinal flushometer. The sensor assembly is powered by a solar cell that harvests power from artificial indoor light. It is designed for use on high-efficiency urinals that flush with as little as a pint of water.
- ADA-compliant and exposed design
- Solar-powered sensor assembly
- Operates by means of an infrared sensor
Product Highlights
This Sloan Solis flushometer supports water management in commercial restroom settings with its solar-powered, sensor-activated single-flush operation.
Product Information
Standard Information
-
Brand: SLOAN
-
Manufacturer Part Number: 3370010
-
Country of Origin: United States
Technical Specifications
-
Gallons per Flush: 0.125
-
Country of Origin (subject to change) [Specifications]: United States
-
Type: Sensor Operated
-
Height: 4.625
-
Power Type: Solar
-
FinishColor: Polished Chrome
-
Finish_Name: Polished Chrome
-
Fixture_Connection: Top
-
Operating_Pressure: 15-80
-
Operating_Mechanism: Single
-
Commercial_or_Residential: Primarily Commercial
-
Distance Between Wall Installation Holes: 4-3/4"
-
Flow Rate: 0.125 GPF (gallons-per-flush)
-
Rated Operating Pressure: 15-100 PSI
-
Activation GPM: .125
-
Control Type: Electronic
-
Spud Placement: Top
-
ADA: Yes
-
Approved for Commercial Use: Yes
-
CA Drought Compliant: Yes
-
TX Drought Compliant: Yes
-
Manufacturer: Sloan
-
Also Known As: SOLIS 8186-0.125
-
Finish: Chrome
-
Flush Mode: Single Flush
-
Flush Valve Design: Diaphragm
-
Flush Valve Location: Exposed
-
For Use With: Urinals
-
GPF: 0.13
-
Power: Solar
-
Product: Automatic Toilet Flushers
-
Product Type: Bathroom Supplies
-
Series: SOLIS
-
Spud Size: 3/4"
-
Spud Type: Top
-
Weight: 8.20
-
Flush Volume: 0.125 GPF
-
Battery Life: 6 years
-
Valve: Diaphragm
-
Valve Body Material: Semi-red Brass
-
Fixture Type: Urinal
-

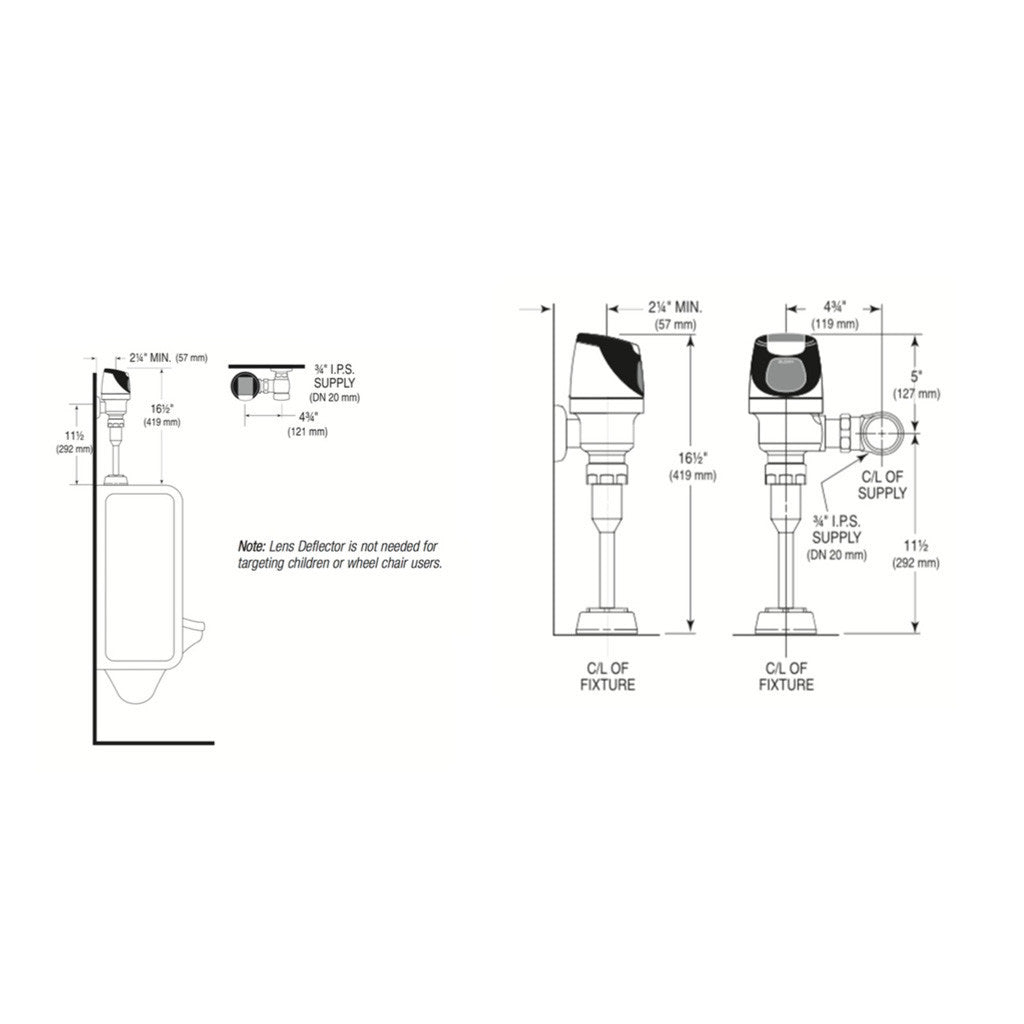

Rough-In Dimension: 11 1
2"
-
Spud Coupling: 3/4"
-
Supply Pipe: 3/4"
-
Override: Electrical
