Sloan 3325402 Optima Urinal Retrofit Kit 1.0 1.5 Gpf

Product Description

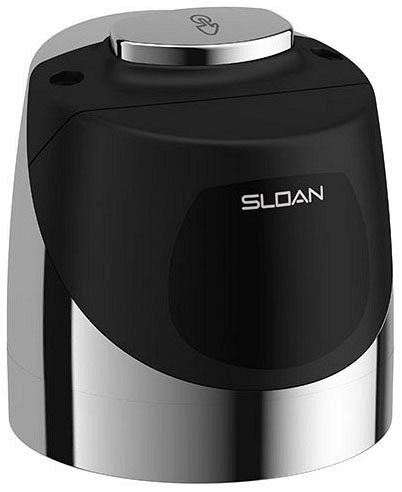

The SLOAN 3325402 is a battery-powered sensor flush valve retrofit kit designed to upgrade existing Royal G2 RESS-U urinal flush valves to hands-free, automatic operation. This kit converts a manual or older-generation flush valve into an Optima-series sensor-activated unit without requiring full valve replacement. It is rated for both 1.0 GPF and 1.5 GPF applications, giving the installer flexibility to meet water conservation requirements or local plumbing codes. Commercial plumbers and facility maintenance technicians install this kit in restroom retrofit projects where touchless operation is required.

This retrofit kit is suited for commercial restroom applications where upgrading to sensor-activated flush control is necessary. Typical installations include office buildings, schools, stadiums, and hospitality facilities that are upgrading existing SLOAN Royal G2 RESS-U urinal flush valves. The battery-powered design eliminates the need for hardwired electrical connections, making it a practical solution in locations where running AC power to the valve is not feasible.

Key Features

• Retrofits existing Royal G2 RESS-U urinal flush valves to sensor-activated operation
• Battery-powered sensor module — no hardwired electrical required
• Dual flush rate compatibility: 1.0 GPF and 1.5 GPF
• Hands-free operation reduces surface contact in high-traffic restrooms
• Drop-in retrofit design minimizes downtime during installation

Compatibility

Designed as an OEM-style retrofit for SLOAN Royal G2 RESS-U urinal flush valve assemblies at 1.0 GPF and 1.5 GPF flow rates.

Installation Notes

Installation should be performed by a licensed plumber. Shut off the water supply to the flush valve before beginning any disassembly. Verify the existing valve body is a compatible Royal G2 RESS-U model before installing the retrofit kit. Follow local plumbing codes and the manufacturer installation instructions for sensor alignment and battery installation.

Technical Specifications

• Flush Rate: 1.0 GPF and 1.5 GPF
• Power Source: Battery
• Operation Type: Sensor-activated, hands-free
• Application: Urinal flush valve retrofit

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3325402
