SLOAN VALVE CO 3315177BT EBF750-8-BAT-BDM-CP-2.2-GPM-LAM-S-FCT

Product Description

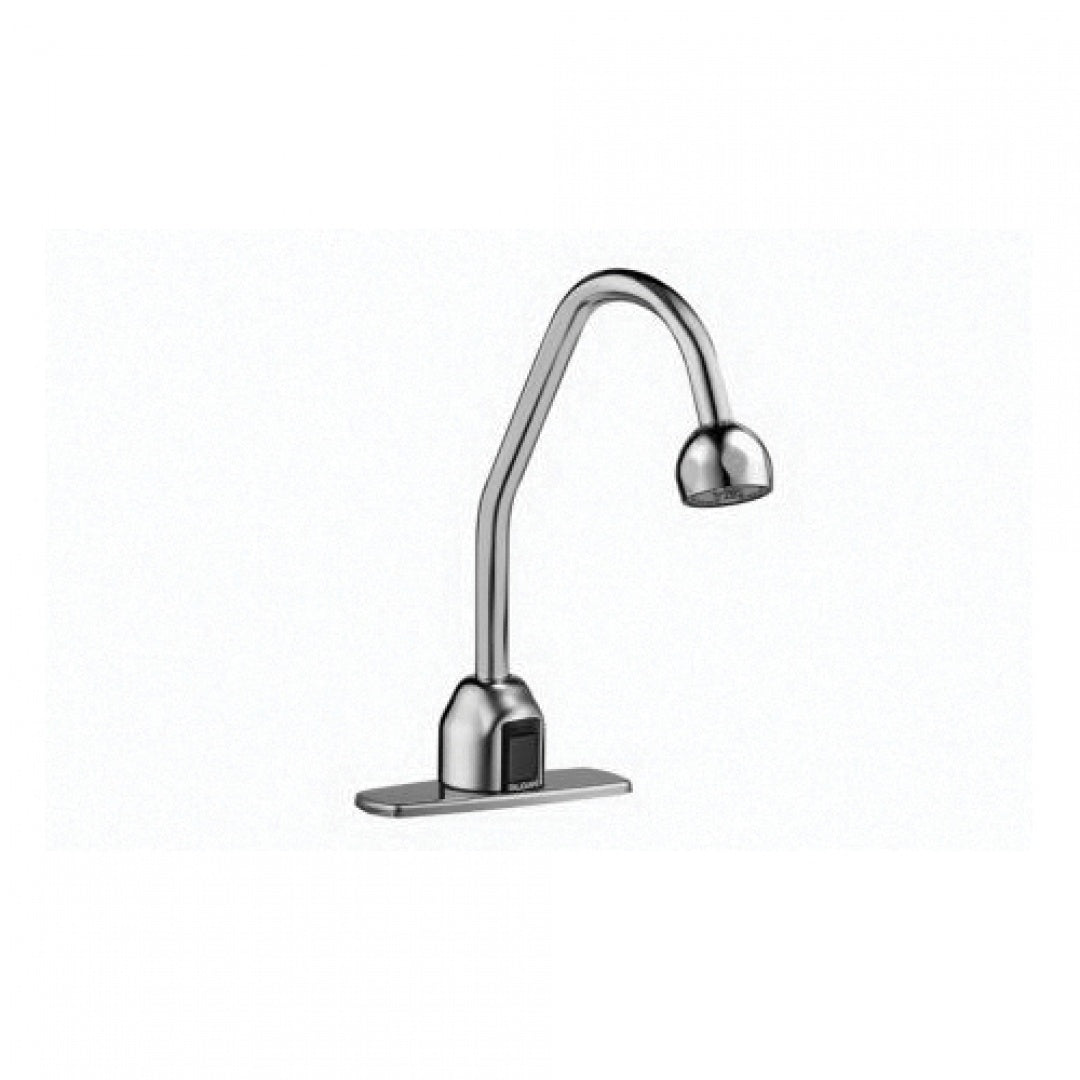

The SLOAN VALVE CO 3315177BT is an electronic sensor-activated faucet from the EBF-750 series. This unit features a flow rate of 2.2 gallons per minute, suitable for various commercial applications. The gooseneck spout has a reach of eight and seven-sixteenths inches and a height of six and seven-eighths inches, designed for deck mounting with a single faucet hole. The touchless operation ensures hygienic hand washing. This faucet is made from cast brass and has a polished chrome finish.

• Touchless activation for hands-free use.
• Integrated water shut-off enhances efficiency.
• Self-adapting infrared sensor with adjustable range.

Product Highlights

This product includes a below deck manual mixing valve and supports various mounting options. It is designed for easy installation and maintenance.

Product Information

Standard Information

• Manufacturer: SLOAN VALVE CO
• Function: Touchless

Technical Specifications

• Collection: Optima
• Flow Rate: 2.2 gpm
• Spout Height: 6-7/8 in
• Spout Reach: 8-7/16 in
• Dimensions: 12-1/4 in H
• Mounting Type: Deck
• Spray Pattern: Laminar
• Material: Cast Brass
• Number of Faucet Holes: 1
• Valve Type: Manual Mixing Valve
