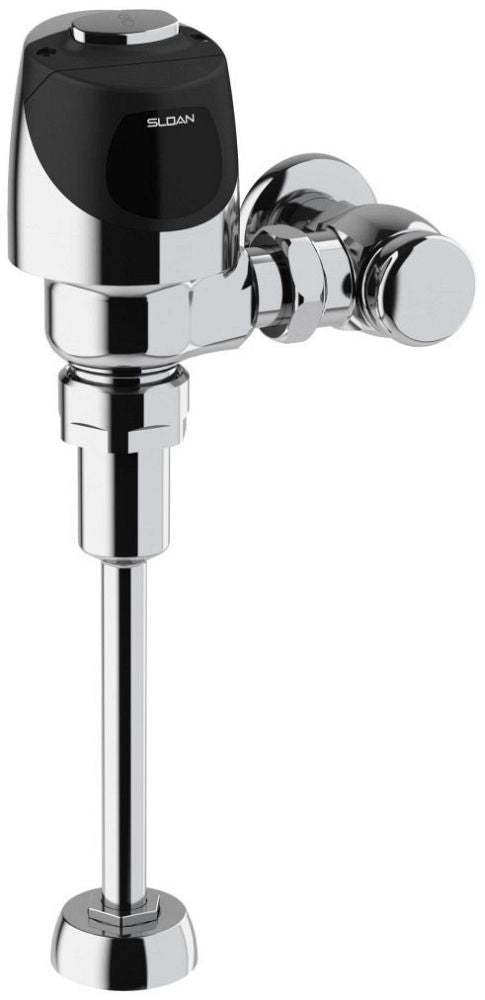

Sloan 32503012 Flushometer 0.5 Gpf Battery

Product Description

The SLOAN 32503012 is a battery-operated, sensor-activated flushometer designed for water-conserving restroom fixture installations. Built around the G2 platform and rated at 0.5 gallons per flush (GPF), this unit suits low-consumption applications where hardwired power is not available or practical. The sensor-activated design eliminates manual handle operation, reducing cross-contamination risk in high-traffic commercial and institutional restrooms. Licensed plumbers and facilities maintenance technicians are the primary installers for this class of flush valve.

This flushometer is configured for urinal applications requiring a 0.5 GPF flush rate, consistent with modern water-efficiency codes including requirements under LEED and state plumbing conservation mandates. The battery-operated feature set makes it well suited for retrofit installations in existing restroom facilities where running new electrical service to each fixture position is cost-prohibitive. The G2 Series designation indicates compatibility with the SLOAN 8186-0.5 valve body platform.

Key Features

• 0.5 GPF flush rate supports low-consumption plumbing code requirements
• Battery-operated sensor activation eliminates need for hardwired electrical supply
• Hands-free sensor design reduces surface contact in restroom environments
• G2 platform construction for consistent flush performance and field serviceability
• Designed for urinal fixture applications in commercial and institutional settings

Compatibility

Designed for use with the SLOAN 8186-0.5 valve body platform as part of the G2 flushometer series. Consult SLOAN documentation to confirm fitting compatibility with the target fixture before installation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local and International Plumbing Code (IPC) requirements. Shut off the water supply to the fixture and relieve line pressure before removing or mounting the flushometer. Battery compartment access and sensor calibration should follow the manufacturer service documentation specific to this unit. Do not overtighten supply stop connections, as excessive force can damage valve body seats.

Technical Specifications

• Flush Rate: 0.5 GPF
• Power Source: Battery Operated
• UPC: 671254548398

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 32503012
