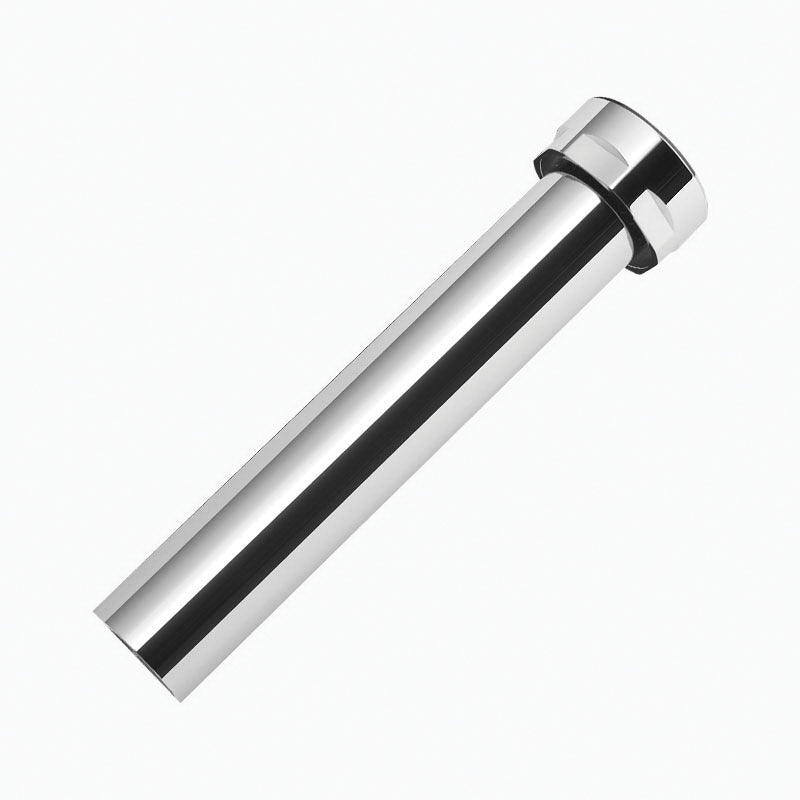

Sloan 323026 Vacuum Breaker 1-1/4x15 in Polished Chrome

Product Description

The SLOAN 323026 is a V-500-AA vacuum breaker designed to prevent backflow in commercial and institutional plumbing systems equipped with flushometer valves. It mounts inline on the flush connection between the flushometer body and the fixture, providing an atmospheric break that stops contaminated water from siphoning back into the potable supply line. The unit finishes in polished chrome and measures 1-1/4 inches in connection diameter with an overall length of 15 inches. Licensed plumbers and commercial plumbing contractors are the typical installers of this component.

This vacuum breaker is used in restroom installations where flushometer-actuated water closets or urinals require backflow protection under local plumbing codes. It is suited for commercial, institutional, and light industrial facilities where code compliance mandates an approved vacuum breaker on each flush valve supply. The polished chrome finish coordinates with standard commercial fixture trim in visible or semi-exposed installations.

Key Features

• Prevents backflow and back-siphonage on flushometer valve supply lines
• 1-1/4 inch connection size fits standard commercial flushometer supply tubes
• 15 inch overall length for proper inline installation clearance
• Polished chrome finish for corrosion resistance and trim compatibility
• Domestic manufacture

Compatibility

Designed for use with flushometer valves in commercial plumbing applications. Specific compatible flushometer models or system families were not provided in the product data; verify connection size and valve series compatibility with SLOAN documentation before ordering.

Installation Notes

Installation of vacuum breakers on flushometer systems is performed by a licensed plumber and must comply with the International Plumbing Code and any applicable local amendments. Shut off the water supply to the flushometer and relieve line pressure before disassembling the supply connection. Do not install the vacuum breaker below the flood level rim of the fixture, as proper elevation above the rim is required for the device to function correctly. Inspect all threaded connections for proper engagement and use appropriate thread sealant rated for potable water service.

Technical Specifications

• Connection Size: 1-1/4 inches
• Overall Length: 15 inches
• Finish: Polished Chrome
• Country of Origin: Domestic

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 323026
