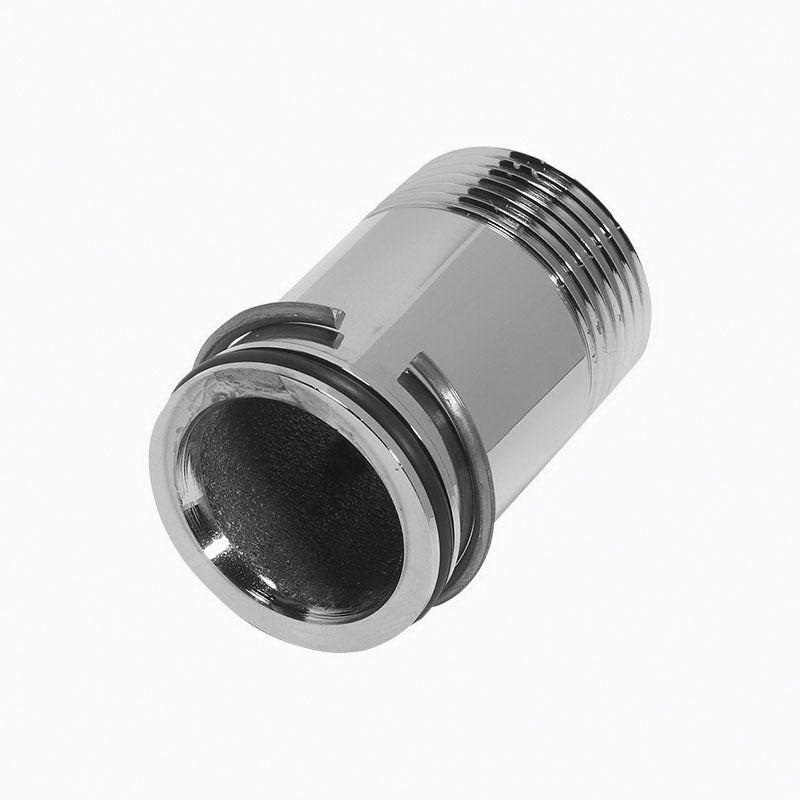

Sloan 308807 Tailpiece Assembly Polished Chrome Flushometer

Product Description

The SLOAN 308807 is an H-551-A tailpiece assembly designed for use with Sloan flushometer systems. This component connects the flushometer valve body to the fixture inlet, providing a sealed, chrome-finished transition point in the flush water path. At 5-1/16 inches in length and finished in polished chrome, it is suited for commercial restroom installations where appearance and durability are both required. Licensed plumbers and commercial facility technicians are the primary installers of this assembly.

This tailpiece assembly is intended for use in commercial plumbing applications where Sloan flushometer valves are installed on water closets or urinals. It is a direct-fit replacement or new-installation component for Sloan flushometer-equipped fixtures in schools, offices, healthcare facilities, and other high-traffic restroom environments. The domestic designation indicates this unit is manufactured to U.S. standards.

Key Features

• H-551-A tailpiece design engineered for Sloan flushometer valve systems
• 5-1/16 inch length suits standard flushometer-to-fixture drop distances
• Polished chrome finish for corrosion resistance and aesthetic compatibility with commercial fixtures
• Domestically manufactured to U.S. plumbing standards
• Assembly format simplifies replacement during flushometer service calls

Compatibility

Designed for use with Sloan flushometer valves. Install only where the H-551-A tailpiece specification is confirmed for the flushometer model being serviced.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply to the flushometer and relieve line pressure before removing the existing tailpiece. Inspect the spud and coupling nut threads before installing the new assembly, and verify a leak-free connection before returning the fixture to service.

Technical Specifications

• Model Series: H-551-A
• Length: 5-1/16 inches
• Finish: Polished Chrome
• Origin: Domestic

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 308807
