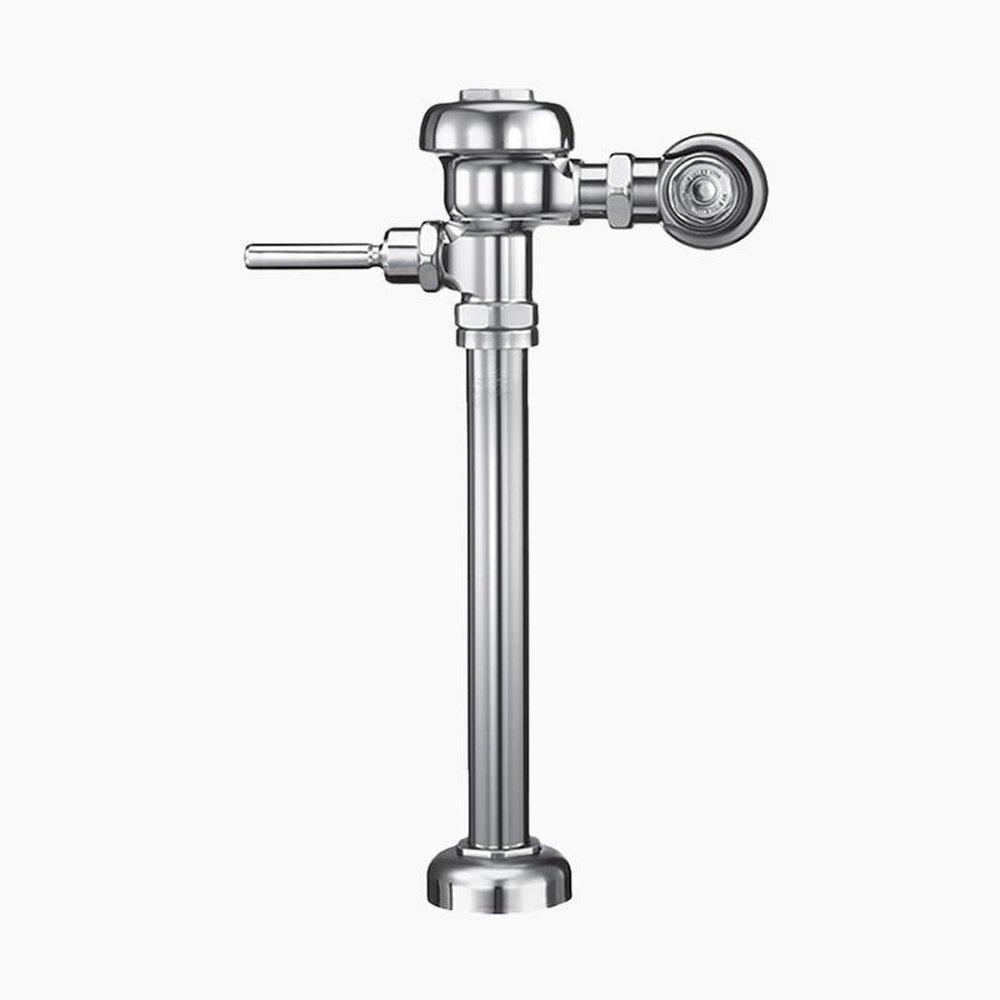

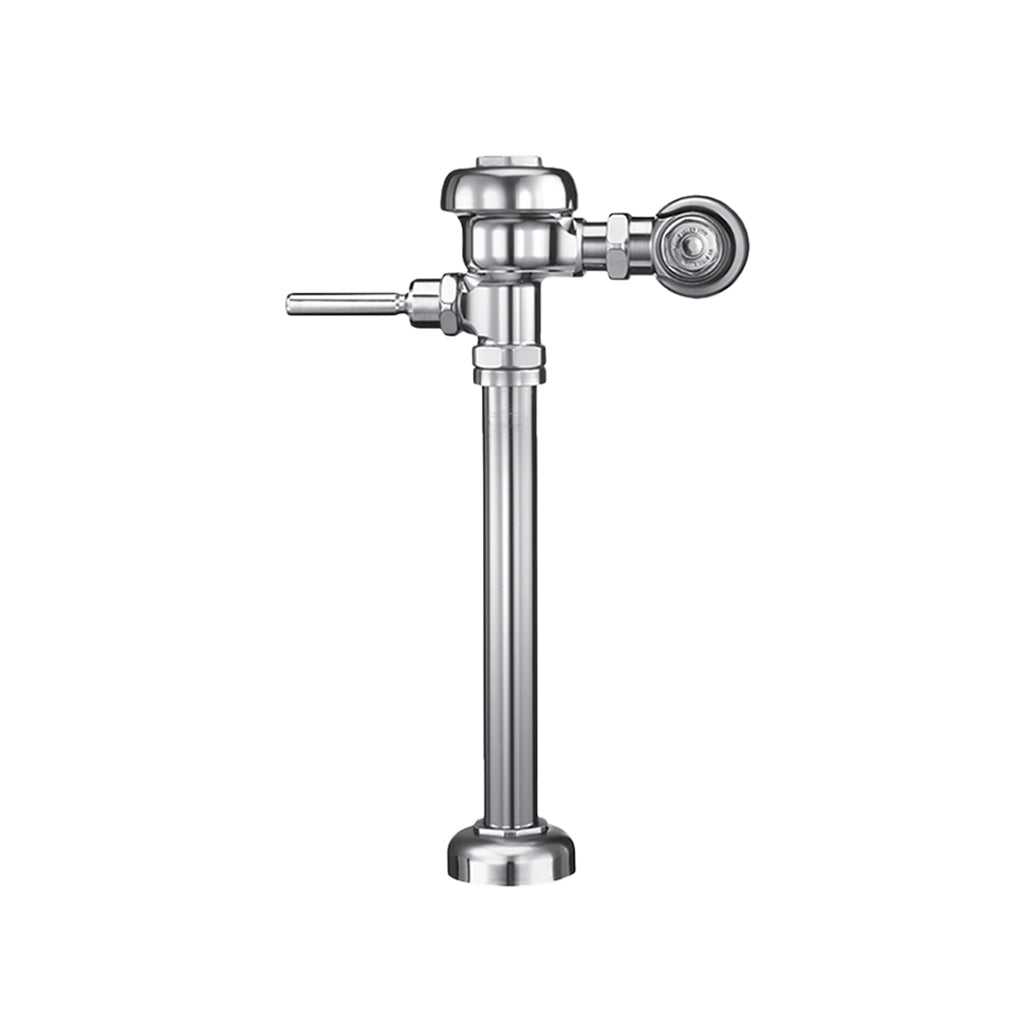

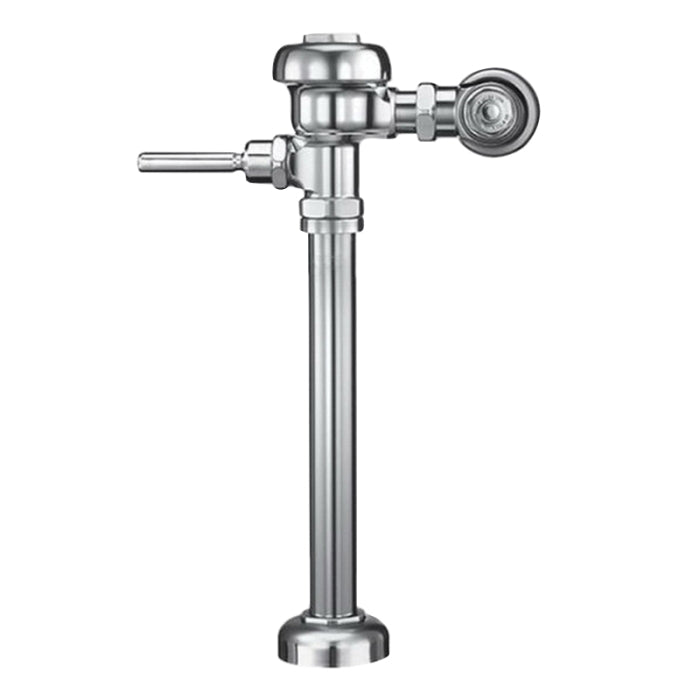

Sloan 3080553 Regal 117-XL Service Sink Flushometer 6.5 gpf

Product Description

The SLOAN 3080553 is a Regal 117-XL semi-red brass service sink flushometer with a 6.5 gpf flow rate and polished chrome finish. It is designed for manual operation in commercial toilet applications. The flushometer includes an XL sweat solder adapter kit.

• ADA compliant metal oscillating non-hold open handle
• 1 in IPS screwdriver bak-chek angle stop
• Diaphragm, handle packing and vacuum breaker molded from Permex rubber compound for chloramine-resistance

Product Highlights

This manual flushometer ensures water conservation with its non-hold open handle and no external volume adjustment. Its durable construction and chloramine-resistant components provide long-lasting performance.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3080553
• Country of Origin: USA

Technical Specifications

• Configuration: Exposed
• Finish: Polished Chrome
• Flow Rate: 6.5 gpf
• Flush Type: Lever Handle
• Includes: XL Sweat Solder Adapter Kit
• Item Name: Service Sink Flushometer
• Length: 24 in
• Material: Semi Red Brass
• Mounting: Floor, Wall
• Pressure Rating: 15 - 80 psi
• Rough-In: 24 in
• Series: 117-XL
• Spud Placement: Top
• Spud Size: 1-1/2 in
• Sub Brand: Regal
• Supply Pipe Size: 1 in
• Width: 4-3/4 in
• Applications: For commercial toilets
• Standards/Certifications: ADA, BAA compliant, ANSI/ASME 112.19.2, ASSE 1037
• Fixture Mount: Wall
• Fixture Type: Service Sink
• Installation Place: Exposed
• Brand: Sloan
• ADA Compliant: Yes
• Model: Regal
• Gallons Per Flush: 6.5
• Installation Type: Toilet
• Application: Plumbing
• Flush Action: Manual
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Dual Flush: No
• Flow Rate Range: Greater than 1.5 gpf
• Flush Valve Application: Service Sink
• Spud Location: Top
• Valve Size: 1 in
• WaterSense Labeled: No
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Connection: Top Spud
• Rough-In Dimension: 24"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• Adapter: XL Sweat Solder Adapter Kit
