Sloan 3017901 Royal 950 3.5 GPF

Product Description

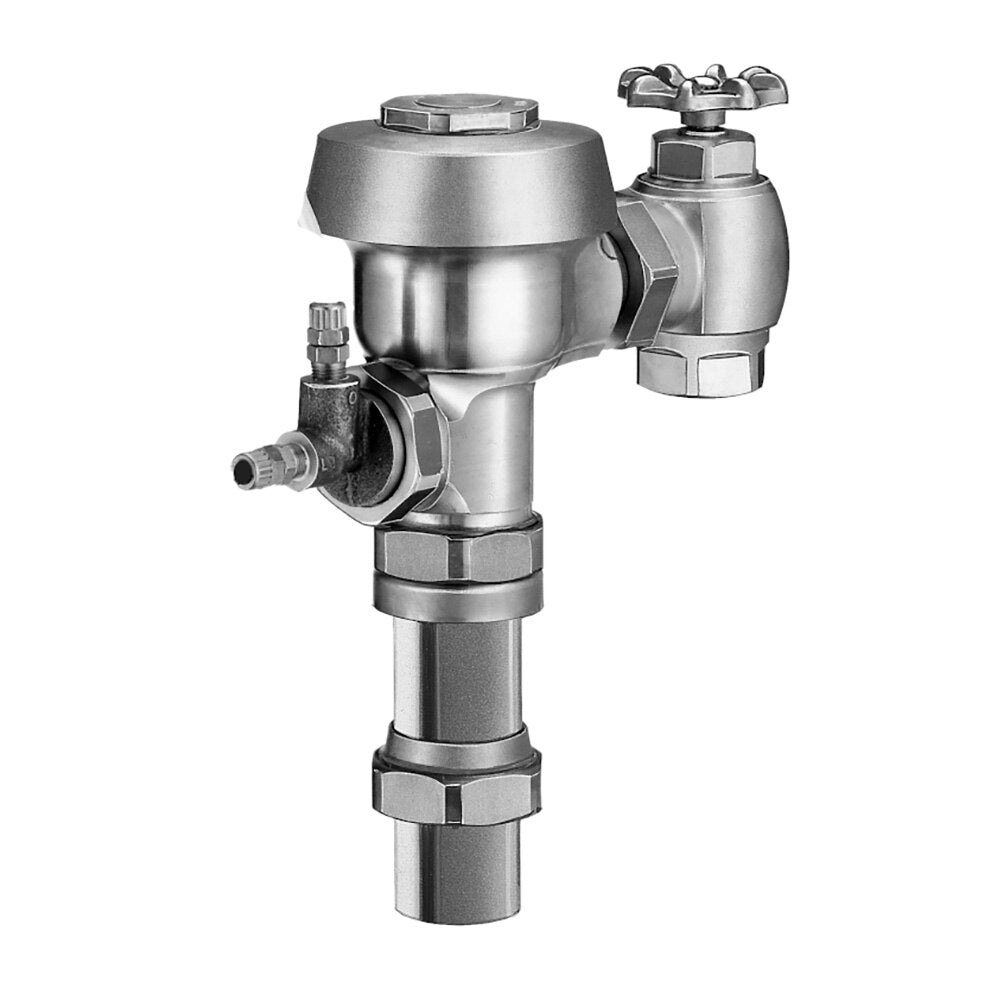

The SLOAN 3017901 Royal 950 is a concealed hydraulically operated water closet flushometer designed for bowls and flushing rim floor drains. It is ADA compliant and features a diaphragm, stop seat, and vacuum breaker molded from Permex™ rubber compound for chloramine resistance. The valve is in compliance with ASSE 1037 standards.

• Features a 1" I.P.S. wheel handle Bak-Chek™ angle stop and an adjustable tailpiece.
• Flush Volume: 3.5 GPF (13.2 LPF)
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Product Highlights

This Sloan Royal 950 flushometer is a reliable and efficient choice for commercial restroom applications, offering water conservation and vandal-resistant features.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3017901
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Royal 950
• Finish [Specifications]: Rough Brass
• Country of Origin (subject to change) [Specifications]: United States
• Manufacturer (Brand): Sloan
• Manufacturer Item Number: 3017901
• UPC: 671254031395
• Package Quantity: Each
• Finish: Rough Brass
• Fixture Type: Toilet
• Feature: Genuine OEM
• Model Name: Royal
• Model Number: ROYAL 950-3.5
• Flow Rate: 3.5 GPF (gallons-per-flush)
• Rated Operating Pressure: 10-100 PSI
• Spud Size: 1.5 in.
• Configuration: Hydraulic
• Control Type: Manual
• Installation Type: Toilet
• Material: Metal
• Faucet Features: ADA
• Faucet Part Feature: Closet
• Inlet Size: 1 in IPS
• Pressure Rating: 15 to 80 psi
• Connection Location: Top Spud
• Handle Type: Non-Hold Open
• Manufacturer #: 3017901
• Series: 950
• Type: Single-Flush
• Valve Design: Diaphragm
